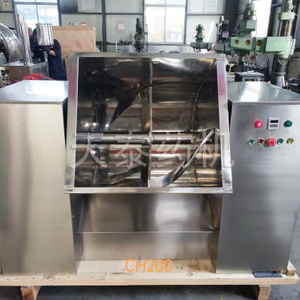

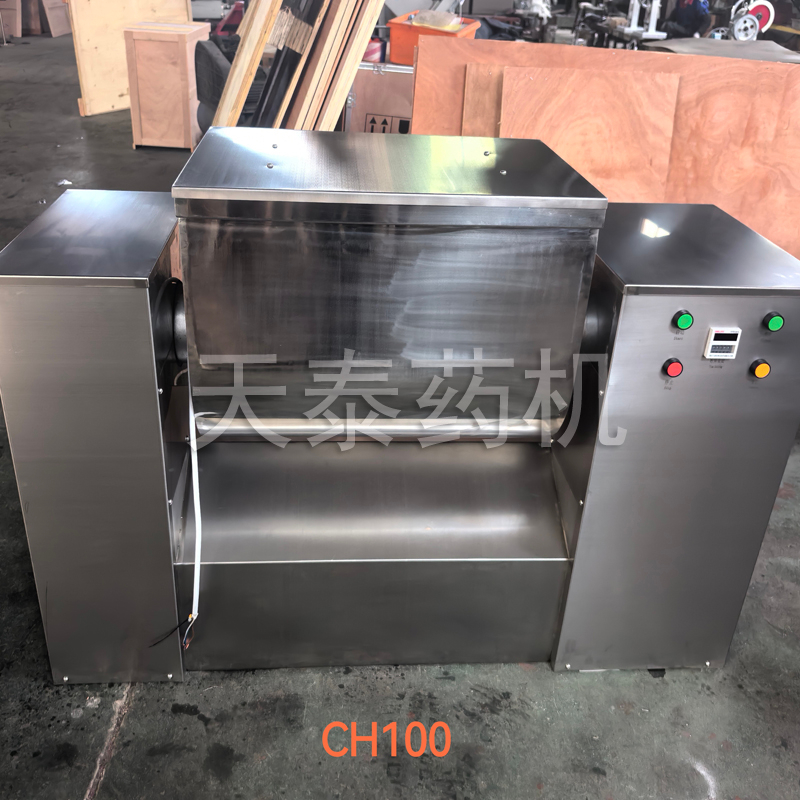

The trough mixer is mainly used in the pharmaceutical industry to uniformly mix dry or wet powdery materials in different proportions, and does not cause dissolution, volatilization or deterioration of the materials during the mixing process.
The trough mixer is suitable for mixing different primary and auxiliary materials in chemical, food and other industrial sectors. It is suitable for mixing semi-solids. This machine has a complete machine base. The transmission system operates smoothly and smoothly. The mixing paddle and working parts in contact with the materials are made of stainless steel. They have good corrosion resistance and can maintain the quality of the mixed materials so that they do not pollute or discolor. The transmission mechanism mainly adopts worm gear and worm drive, which makes no excessive noise during use, and has sufficient oil storage capacity, which can be well lubricated and extend the service life of the machine. This machine is controlled by electrical equipment and is easy to operate. It uses automatic inching to unload materials, which reduces the labor intensity of the operator.
model | CH-50 type | CH-100 type |
Effective working volume (L) | 50 | 100 |
Spindle speed (r/min) | 24 | 24 |
Mixing cycle (min) | 5-20 | 5-20 |
Main motor(kw) | 1.1kw | 2.2kw |
Discharging motor (kw) | 0.75Kw | 0.75Kw |
Mechanical weight (kg) | 220 | 250 |
Overall dimensions (mm) (L×C×H) | 1000×425×830 | 1335×4940×930 |
Trough mixers have good performance and reliable materials, and are used in many industrial fields. In the pharmaceutical industry, it can complete the mixing work of dry and wet powders in different proportions. During the mixing process, it can better avoid dissolution, volatilization or deterioration of materials, which helps to ensure the quality of medicines. In the chemical industry, food and other industries, it can also mix various main and auxiliary materials, and can also handle semi-solid materials. It can meet the needs of uniform mixing of materials in different production scenarios, and provides equipment support for the production of products in various industries.
