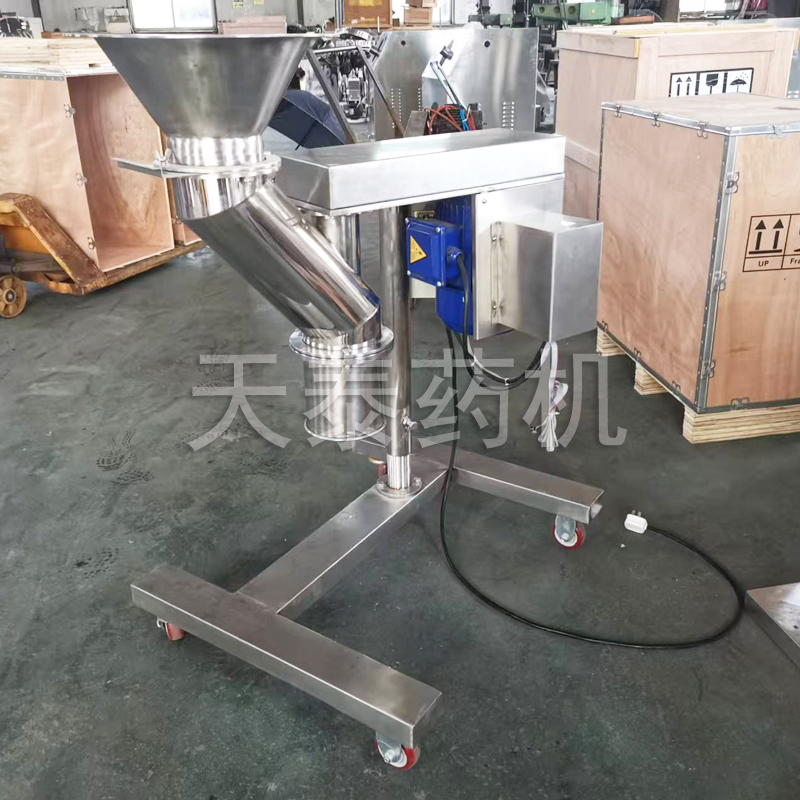

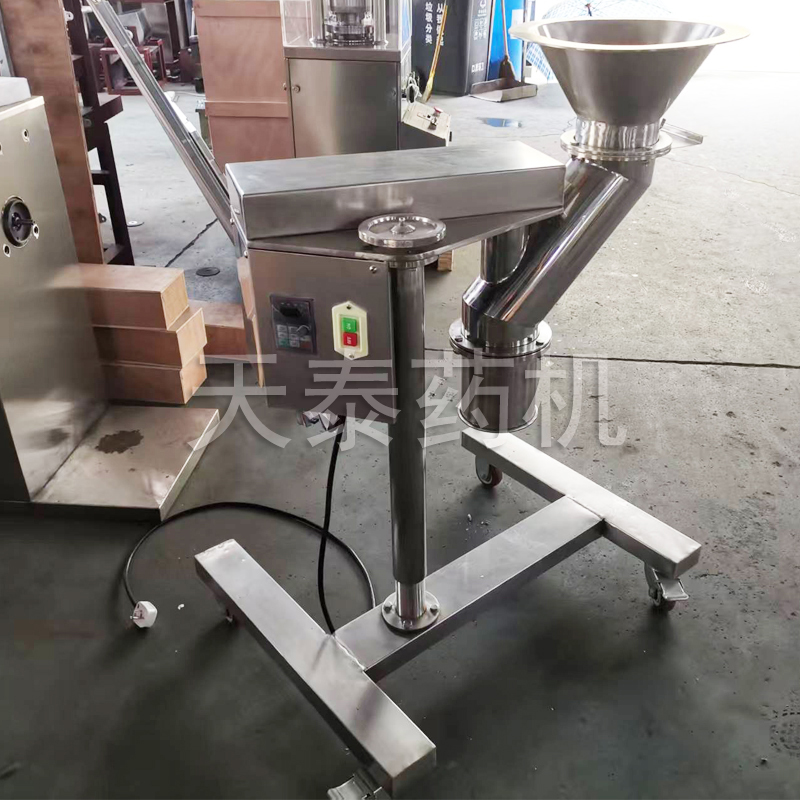

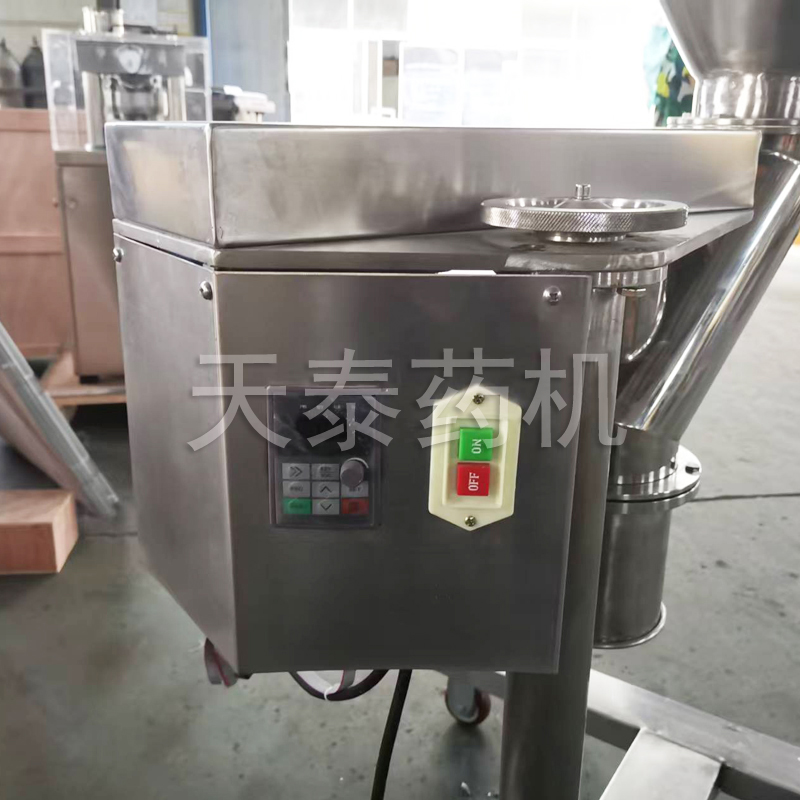

The rapid granulator is the core equipment in the production of solid preparations in the pharmaceutical, food, health care products and other industries. It is specially designed to solve the needs of particle uniformity, granulation and lump material crushing. This equipment achieves rapid granulation of wet/dry materials through the synergistic effect of mechanical cutting and screen filtration. It has the characteristics of low heat generation, low dust, and flexible operation.
Dry and wet granule homogenization and granulation; crushing and granulation of agglomerated materials; wet material granulation; powder magnetization of heat-sensitive materials.
It generates little heat and dust during operation; the stator screen is made of stainless steel plates and is not easily damaged; the gap between the powder magnetic knife and the screen is adjustable; it can handle sticky, gummy, hot and moist materials.
model | KZL-80 | KZL-120 | KZL-160 | KZL-200 |
Production capacity (kg/h) | 50-100 | 100-200 | 150-300 | 200-400 |
Filter hole diameter (mm) | 1-8 | 1-8 | 1-8 | 1-8 |
Power(kw) | 0.75 | 1.1 | 1.5 | 2.2 |
Speed (r/min) | 0-1400 frequency conversion speed regulation | 0-1400 frequency conversion speed regulation | 0-1400 frequency conversion speed regulation | 0-1400 frequency conversion speed regulation |
Overall dimensions (mm) | 650×450×1000 | 1000×800×1200 | 1060×850×1350 | 1100×1000×1500 |
Weight(kg) | 66 | 120 | 150 | 200 |
The rapid granulator is suitable for the pharmaceutical, food and chemical industries. It can achieve particle uniformity, agglomerate crushing and heat-sensitive material processing to meet the production needs of solid preparations.
The rapid granulator is the core equipment in the production of solid preparations in the pharmaceutical, food, health care products and other industries. It is specially designed to solve the needs of particle uniformity, granulation and lump material crushing. This equipment achieves rapid granulation of wet/dry materials through the synergistic effect of mechanical cutting and screen filtration. It has the characteristics of low heat generation, low dust, and flexible operation.
Dry and wet granule homogenization and granulation; crushing and granulation of agglomerated materials; wet material granulation; powder magnetization of heat-sensitive materials.
It generates little heat and dust during operation; the stator screen is made of stainless steel plates and is not easily damaged; the gap between the powder magnetic knife and the screen is adjustable; it can handle sticky, gummy, hot and moist materials.
model | KZL-80 | KZL-120 | KZL-160 | KZL-200 |
Production capacity (kg/h) | 50-100 | 100-200 | 150-300 | 200-400 |
Filter hole diameter (mm) | 1-8 | 1-8 | 1-8 | 1-8 |
Power(kw) | 0.75 | 1.1 | 1.5 | 2.2 |
Speed (r/min) | 0-1400 frequency conversion speed regulation | 0-1400 frequency conversion speed regulation | 0-1400 frequency conversion speed regulation | 0-1400 frequency conversion speed regulation |
Overall dimensions (mm) | 650×450×1000 | 1000×800×1200 | 1060×850×1350 | 1100×1000×1500 |
Weight(kg) | 66 | 120 | 150 | 200 |
The rapid granulator is suitable for the pharmaceutical, food and chemical industries. It can achieve particle uniformity, agglomerate crushing and heat-sensitive material processing to meet the production needs of solid preparations.
