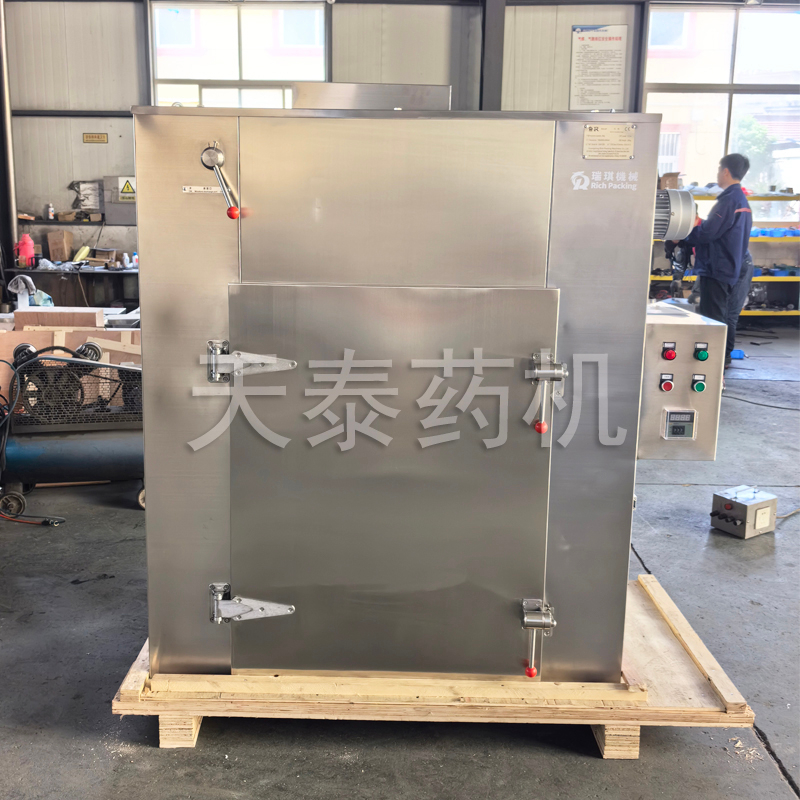

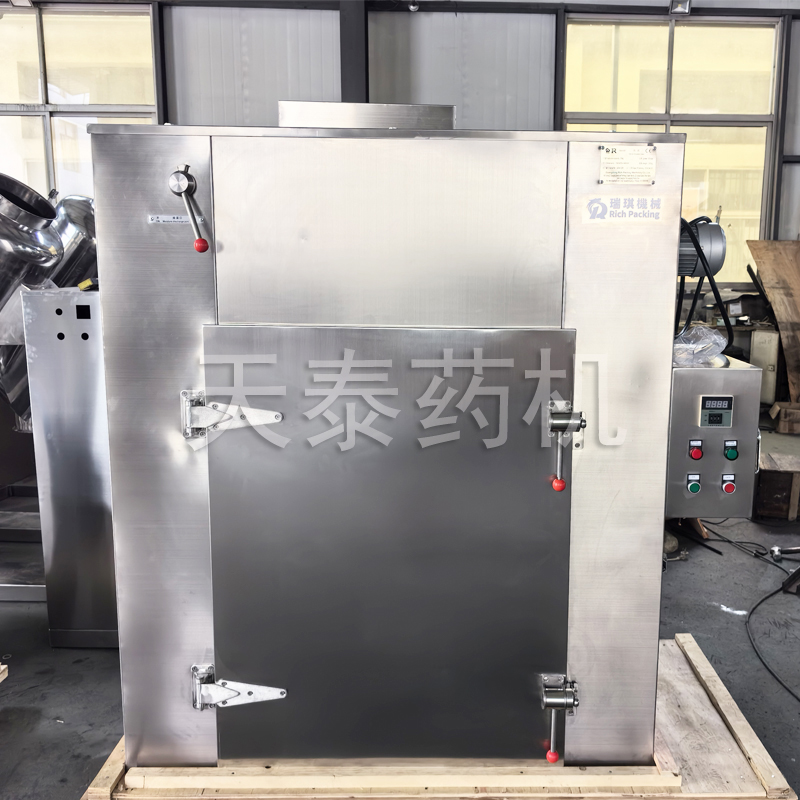

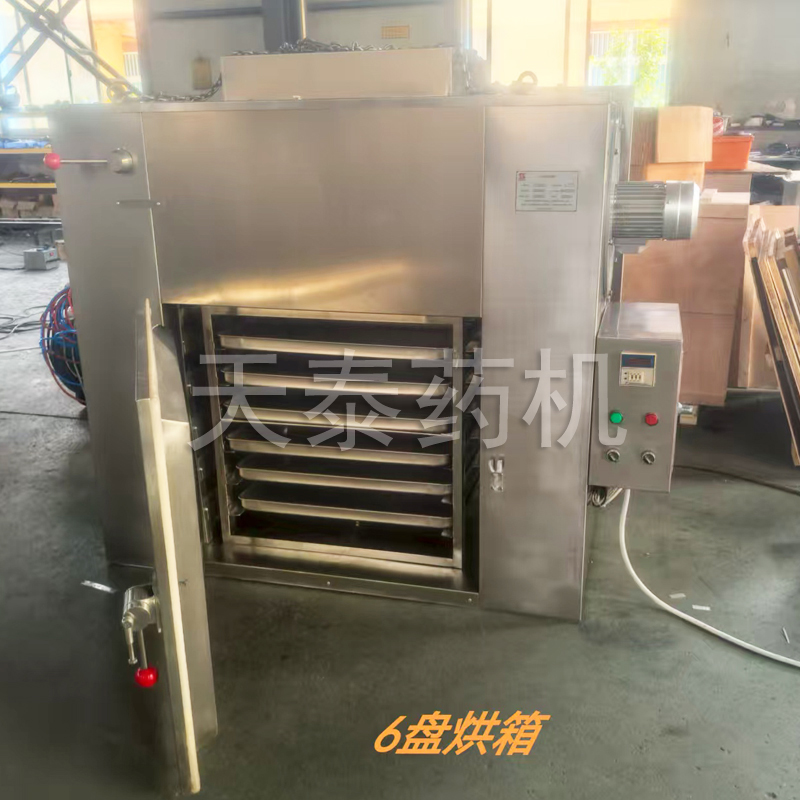

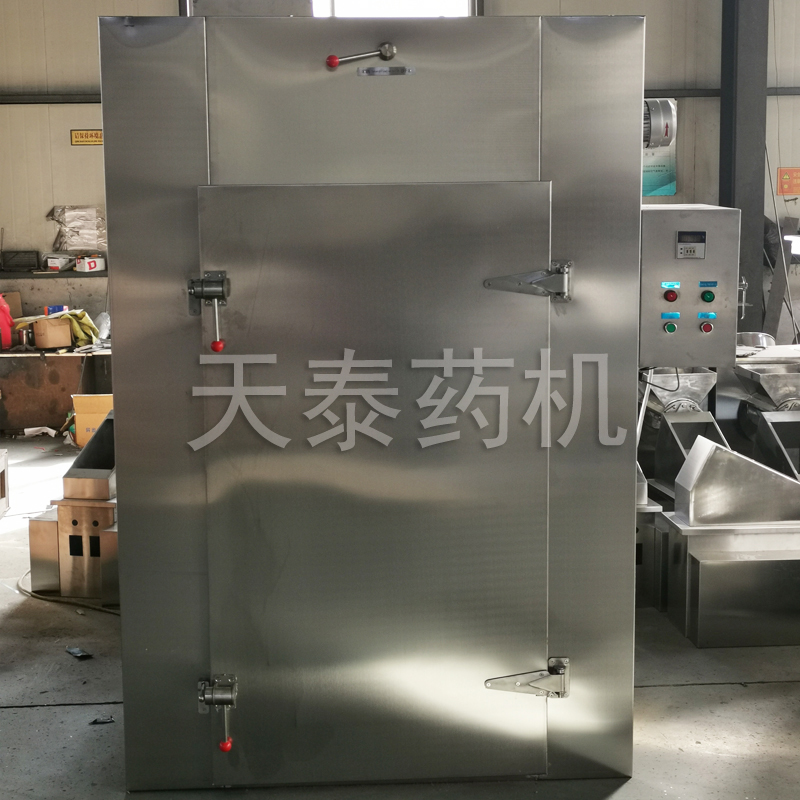

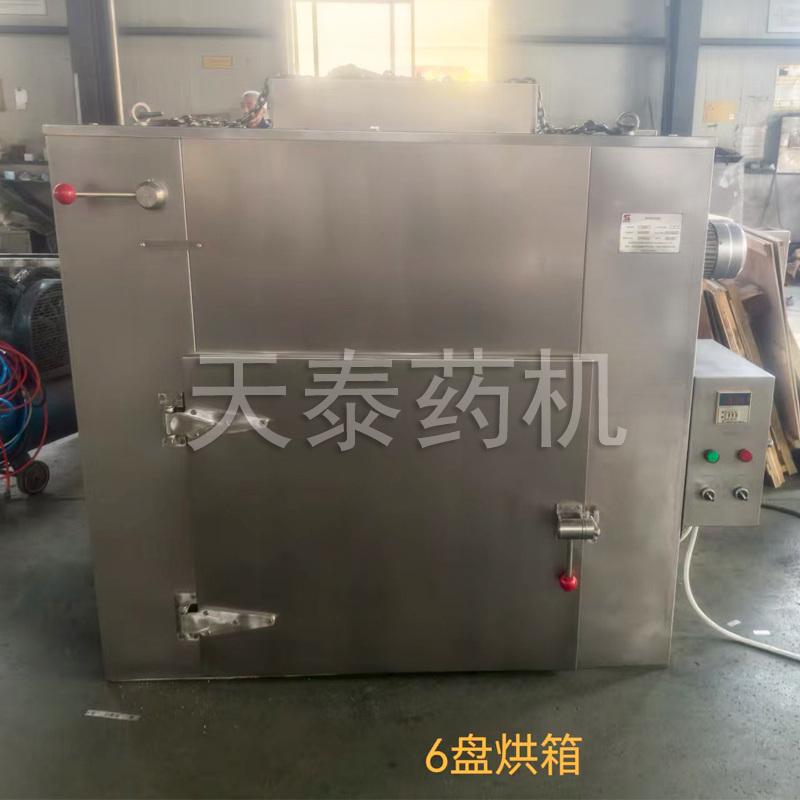

The hot air circulation oven is equipped with a low-noise, high-temperature-resistant axial flow fan. The entire circulation system adopts a fully enclosed design. Most of the hot air circulates in the oven, resulting in high thermal efficiency. Through forced ventilation and the adjustable air distribution plate installed in the box, the material is ensured to be evenly dried. The oven has low operating noise, stable operation, automatic temperature control function, and is easy to install and maintain.
The hot air circulation oven is a rack-type intermittent drying equipment with strong versatility and is suitable for dehumidification and heating of finished materials in pharmaceutical, chemical, food, light industry, electronics and other industries. Its main features are as follows:
Flexible control method: The control cabinet adopts button control (touch control can be customized according to user needs), which is easy to operate and helps to extend the service life of the equipment.
Energy-saving and efficient: Most of the hot air circulates inside the box, reducing heat loss and improving energy utilization.
Uniform drying: forced ventilation and adjustable air distribution panels work together to ensure that materials are heated evenly and the drying effect is consistent.
Stable operation: The whole machine has low noise, stable operation, automatic temperature control, and easy maintenance.
Wide applicability: It can handle a variety of materials and is a commonly used drying equipment in industrial production.
Filtration options: The air inlet can be equipped with a primary or medium-efficiency filter to meet the cleanliness needs of different users.
model | RXH-1.7-A | RXH-2.3-C | RXH-7-C | RXH-14-C | RXH-27-C | RXH-41-C | RXH-54-C |
Evaporation area (m 2) | 1.7 | 2.35 | 7.1 | 14 | 27 | 41 | 54 |
Drying amount per time (Kg) | 15 | 20 | 60 | 120 | 240 | 360 | 480 |
Fan power (Kw) | 0.25 | 0.45 | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
Steam consumption (kg/h) | 6 | 10 | 10 | 18 | 36 | 54 | 72 |
Air volume (m 3/h) | 1400 | 3450 | 3450 | 3450 | 6900 | 10350 | 13800 |
Temperature difference inside the box (℃) | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 |
Comes with baking tray (only) | 6 | 8 | 24 | 48 | 96 | 144 | 192 |
Supporting drying car (vehicle) | 0 | 0 | 1 | 2 | 4 | 6 | 8 |
Overall dimensions (mm) (L×C×H) | 1040×800×1200 | 1040×800×1400 | 1380×1200×2000 | 2300×1200×2000 | 2300×2200×2000 | 3430×2200×2000 | 4460×2200×2290 |
Hot air circulation ovens are widely used in pharmaceutical, chemical, food, light industry, electronics and other industries, and can efficiently complete the tasks of material dehumidification and heating and drying.
The hot air circulation oven is equipped with a low-noise, high-temperature-resistant axial flow fan. The entire circulation system adopts a fully enclosed design. Most of the hot air circulates in the oven, resulting in high thermal efficiency. Through forced ventilation and the adjustable air distribution plate installed in the box, the material is ensured to be evenly dried. The oven has low operating noise, stable operation, automatic temperature control function, and is easy to install and maintain.
The hot air circulation oven is a rack-type intermittent drying equipment with strong versatility and is suitable for dehumidification and heating of finished materials in pharmaceutical, chemical, food, light industry, electronics and other industries. Its main features are as follows:
Flexible control method: The control cabinet adopts button control (touch control can be customized according to user needs), which is easy to operate and helps to extend the service life of the equipment.
Energy-saving and efficient: Most of the hot air circulates inside the box, reducing heat loss and improving energy utilization.
Uniform drying: forced ventilation and adjustable air distribution panels work together to ensure that materials are heated evenly and the drying effect is consistent.
Stable operation: The whole machine has low noise, stable operation, automatic temperature control, and easy maintenance.
Wide applicability: It can handle a variety of materials and is a commonly used drying equipment in industrial production.
Filtration options: The air inlet can be equipped with a primary or medium-efficiency filter to meet the cleanliness needs of different users.
model | RXH-1.7-A | RXH-2.3-C | RXH-7-C | RXH-14-C | RXH-27-C | RXH-41-C | RXH-54-C |
Evaporation area (m 2) | 1.7 | 2.35 | 7.1 | 14 | 27 | 41 | 54 |
Drying amount per time (Kg) | 15 | 20 | 60 | 120 | 240 | 360 | 480 |
Fan power (Kw) | 0.25 | 0.45 | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
Steam consumption (kg/h) | 6 | 10 | 10 | 18 | 36 | 54 | 72 |
Air volume (m 3/h) | 1400 | 3450 | 3450 | 3450 | 6900 | 10350 | 13800 |
Temperature difference inside the box (℃) | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 |
Comes with baking tray (only) | 6 | 8 | 24 | 48 | 96 | 144 | 192 |
Supporting drying car (vehicle) | 0 | 0 | 1 | 2 | 4 | 6 | 8 |
Overall dimensions (mm) (L×C×H) | 1040×800×1200 | 1040×800×1400 | 1380×1200×2000 | 2300×1200×2000 | 2300×2200×2000 | 3430×2200×2000 | 4460×2200×2290 |
Hot air circulation ovens are widely used in pharmaceutical, chemical, food, light industry, electronics and other industries, and can efficiently complete the tasks of material dehumidification and heating and drying.
