SBH series three-dimensional motion mixer:
SBH series three-dimensional motion mixer is a material mixer suitable for pharmaceutical, chemical, food, light industry and other industries and scientific research institutions.
Working principle: When working, the mixing barrel can operate in multiple directions, which accelerates the flow and diffusion of various materials during the mixing process. At the same time, it avoids the segregation and accumulation of material gravity caused by centrifugal force in general mixers, and can achieve better mixing effects.
Features:
The multi-directional movement of the mixing barrel makes the materials in the barrel have more mixing points and the mixing effect is obvious. The mixing uniformity is better than that of ordinary mixers, and the drug content uniformity error is smaller than that of ordinary mixers. Moreover, the charging volume of the SBH series three-dimensional motion mixer is much higher than that of the general mixer (the filling volume of the general mixer is 40% of the full volume of the barrel). The mixing barrel of this series of mixers is uniquely designed. The inner wall of the barrel has been finely polished, with no dead corners and no contamination of materials. When discharging, the material can be discharged smoothly under its own weight with little residue. It has the advantages of not polluting the material, easy discharging, no material accumulation, and easy cleaning. The materials are mixed in a closed state and will not cause pollution to the working environment.

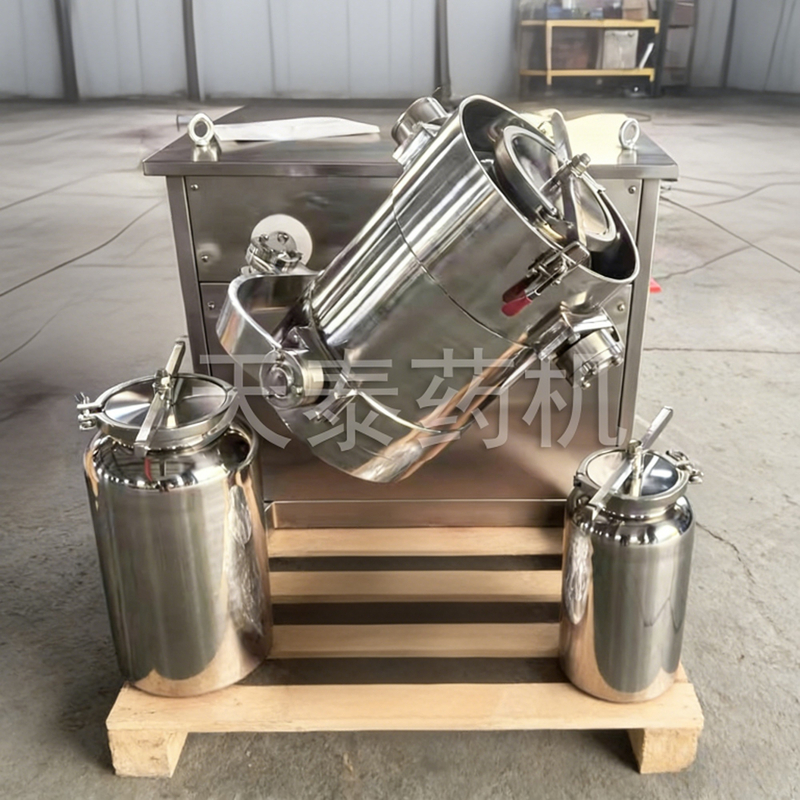

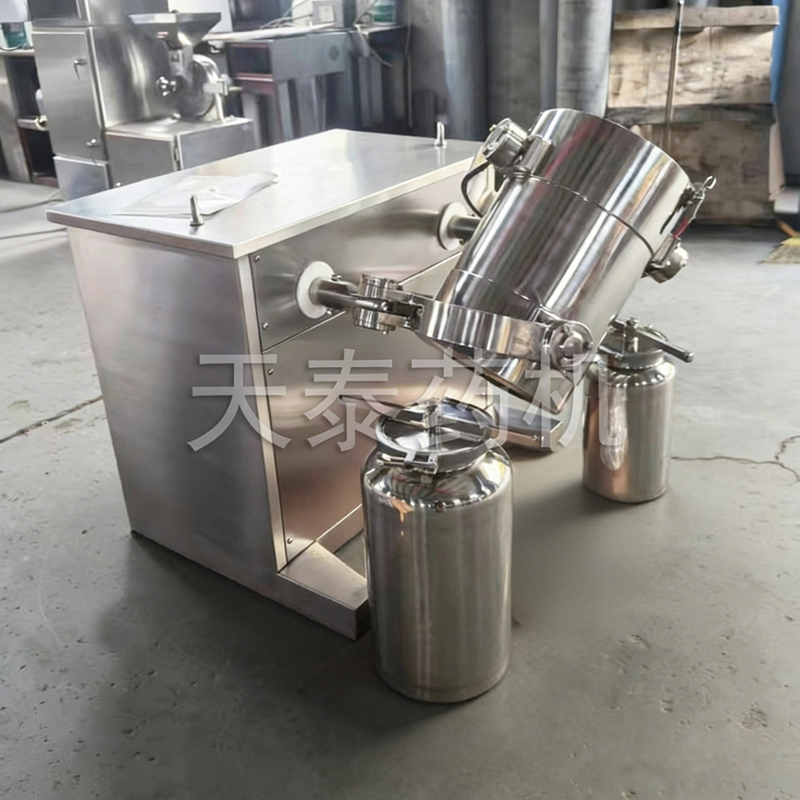

Interchangeable cylinder three-dimensional mixer:
Working principle: The loaded cylinder is driven by the driving shaft to perform compound motions such as translation, rotation and tumbling over and over again, prompting the material to perform three-way compound motion along the cylinder, thereby realizing the mutual flow, diffusion, accumulation and doping of various materials. In order to achieve the purpose of uniform mixing.
Features:
This three-dimensional mixer can choose to use 2L charging cylinder, 5L charging cylinder, or 10L charging cylinder according to the amount of mixture, that is, the 2L charging cylinder, 5L charging cylinder, and 10L charging cylinder can be used interchangeably;
The three-dimensional mixer is a sterile, dust-free, fully enclosed, high-efficiency and energy-saving mixer. It uses the unique three-dimensional swing, translational rotation and rocking principles to produce a powerful alternating pulse motion to continuously push the mixed materials. The vortex it generates has changing energy gradients, thus producing excellent mixing effects. It can even mix several materials with different specific gravity and different particle sizes quickly and evenly.
Adaptable materials:
1. The mixing barrel of this machine moves in multiple directions. The material has no centrifugal force, no specific gravity segregation, stratification, and accumulation. Each component can have a very different weight ratio, and the mixing rate is high. It is an ideal product among various mixers at present.
2. The cylinder filling rate is large, up to 80% (ordinary mixers are only 50%), with high efficiency and short mixing time.
3; Every part of the cylinder body has arc transitions and has been precision polished.
4; Used for high uniformity mixing of powdery and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defense industry and various scientific research units.
model | Mixing barrel volume (L) | Maximum charging volume (L) | Maximum charging weight (kg) | Spindle speed (r/min) | power (kW) | Replaceable barrel (L) |
SBH-10 | 10 | 7 | 6 | 20 | 0.75 | 2, 5, 10 |
SBH-20 | 20 | 14 | 10 | 20 | 0.75 | 2, 5, 10, 20 |
SBH-30 | 30 | 21 | 15 | 15 | 0.75 | 2, 5, 10, 20, 30 |
SBH-50 | 50 | 35 | 25 | 0-15 | 1.1 | 5, 10, 20, 30, 50 |
With its efficient and uniform mixing capabilities, three-dimensional mixers are widely used in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, defense industries and other fields, and can achieve high uniformity mixing of powdery and granular materials.
