Rotary granulator

● Shorten the production cycle and improve overall efficiency;
● Mechanical extrusion and rotation are combined to achieve rapid prototyping of materials;
● Adapt to the viscosity and density of different materials to ensure stable pressing effect;
● Can be used in multiple industries to meet diverse particle preparation needs;
● Compact design, small footprint, easy installation and layout;

Availability:

Quantity:



Inquire Add to Basket

Product Description

1. Product introduction

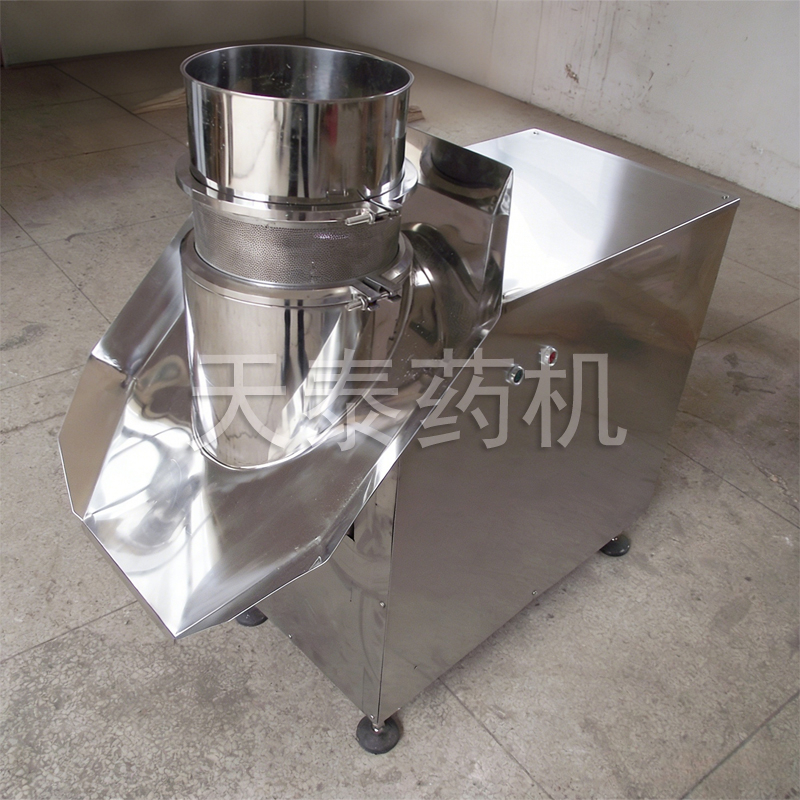

Rotary granulator is suitable for pharmaceutical, food, chemical, light industry and other industries to grind wet powder into required granules. It can also be used to grind dry powder that has been pressed into blocks into granules. This machine is simple to operate, easy to maintain, easy to clean, and can automatically discharge materials. Screen cylinders with different apertures can be selected according to user needs. The parts in contact with the material are all made of stainless steel, which can ensure the true color of the material without deterioration.

2. Product parameters

Screen diameter	270mm	Aperture	0.8-5mm (according to user needs)
Grinding speed	56rpm	Yield	About 100-300kg/h
Motor power	5.5KW	Motor rated speed	1400rpm
Machine weight	255kg	Overall dimensions	1150×510×980mm

3. Industry application

Rotary granulators are widely used in pharmaceutical, food, chemical and other industries to achieve rapid conversion of powder materials into uniform particles due to their efficient continuous granulation and controllable particle size.
