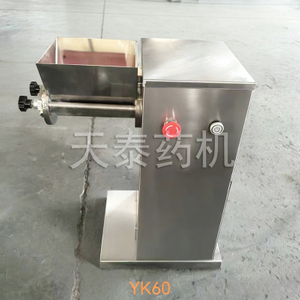

This machine uses the swinging action of a rotating drum to grind wet powdered raw materials into granules through a screen. It can also be widely used to crush pressed blocks into ready-made granules. In the field of chemicals, it is used to grind the mixed powder into granules, which can be dried and compressed into tablets. It can also be used to crush the lumps that have agglomerated during storage or formed during chemical processing. In the planning of food industrial zones, it is used to process candies, sugar mixtures, malt milk and other products, and in other industries such as ceramics, plastics and other mixtures to become molded particles. It is not suitable for solid, liquid, slurry or grinding purposes. The mesh size of the mesh sieve should be prepared by the user according to the particle size requirements.
model | YK60 | YK90 | YK-160 |
Drum diameter | Ø60mm | Ø90mm | Ø160mm |
production capacity | Wet 20, dry 30kg/h | Wet 30, dry 100kg/h | Wet 300, dry 700kg/h |
Swing amplitude | >360° | >360° | >360° |
Number of round trips | 46 times/min | 40 times/min | 40 times/min |
Hopper mouth | 209×210mm | 300×270mm | 410×380mm |
Equipped with motor | Single phase 0.55kw | Single phase 1.1kw, three phase 0.75kw | 2.2kw |
Voltage | 220v/380v | 220v/380v | 220v/380v |
Overall dimensions | 565×320×595mm | 750×460×840mm | 950×640×1080mm |
weight | 70kg | 150kg | 220kg |
Swinging granulators are widely used in pharmaceutical, chemical, food and other industries to process wet powder or block materials into uniform particles to meet the needs of molded product preparation and material depolymerization.
This machine uses the swinging action of a rotating drum to grind wet powdered raw materials into granules through a screen. It can also be widely used to crush pressed blocks into ready-made granules. In the field of chemicals, it is used to grind the mixed powder into granules, which can be dried and compressed into tablets. It can also be used to crush the lumps that have agglomerated during storage or formed during chemical processing. In the planning of food industrial zones, it is used to process candies, sugar mixtures, malt milk and other products, and in other industries such as ceramics, plastics and other mixtures to become molded particles. It is not suitable for solid, liquid, slurry or grinding purposes. The mesh size of the mesh sieve should be prepared by the user according to the particle size requirements.
model | YK60 | YK90 | YK-160 |
Drum diameter | Ø60mm | Ø90mm | Ø160mm |
production capacity | Wet 20, dry 30kg/h | Wet 30, dry 100kg/h | Wet 300, dry 700kg/h |
Swing amplitude | >360° | >360° | >360° |
Number of round trips | 46 times/min | 40 times/min | 40 times/min |
Hopper mouth | 209×210mm | 300×270mm | 410×380mm |
Equipped with motor | Single phase 0.55kw | Single phase 1.1kw, three phase 0.75kw | 2.2kw |
Voltage | 220v/380v | 220v/380v | 220v/380v |
Overall dimensions | 565×320×595mm | 750×460×840mm | 950×640×1080mm |
weight | 70kg | 150kg | 220kg |
Swinging granulators are widely used in pharmaceutical, chemical, food and other industries to process wet powder or block materials into uniform particles to meet the needs of molded product preparation and material depolymerization.
