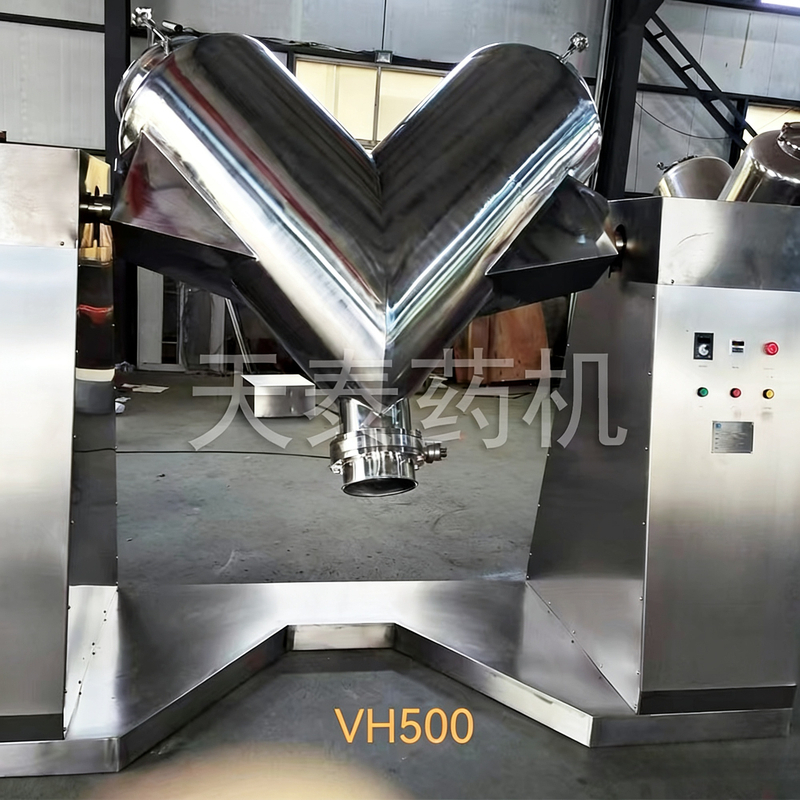

The V-type mixer adopts a manual feeding and closed butterfly valve discharging structure, which can achieve relatively clean operation and reduce dust generation. At the same time, there is no mechanical extrusion and strong friction when the materials are mixed, which helps to keep the material particles intact. The mixing barrel of this machine is made of stainless steel, which has no pollution to the mixed materials. In addition, this machine is also equipped with a timing device that can control the mixing time of materials.
The V-type mixer drives the cylinder to rotate through a reduction mechanism, and uses the asymmetry caused by the unequal lengths of the two cylindrical cylinders of the mixer to perform mixing. When the mixer moves, the materials change from decomposition to combination. Due to the difference in potential energy, a lateral force is generated, which promotes the lateral communication of the materials. When materials go from combination to decomposition, due to the different planes of the materials, a lateral force is generated to promote the lateral exchange of materials. One rotation of the cylinder will cause part of the material to flow from one cylinder to another. At the same time, the rotation of the cylinder will also cause the material to flow radially. In this way, the material will alternately undergo transverse and radial decomposition and combination, and finally achieve a more uniform mixing effect of the material.
model | VH500 | VH1000 |
Full volume (L) | 500 | 1000 |
Net volume (L) | 200 | 400 |
Loading factor | 40% | 40% |
Maximum loading capacity (Kg) | 250 | 500 |
Optimal loading capacity (Kg) | 140 | 280 |
Maximum loading capacity (L) | 275 | 550 |
Optimal loading capacity (L) | 200 | 400 |
Minimum loading capacity (L) | 150 | 300 |
Barrel diameter (mm) | Φ600 | φ750 |
Feed port diameter (mm) | φ350 | φ400 |
Discharge port diameter (mm) | φ200 | Φ200 |
Motor power (Kw) | 2.2 | 3 |
Rotation speed (r/min) | 1-13 | 10 |
Barrel angle | 80° | 80° |
Height of discharge port from ground (mm) | 690 | 660 |
Barrel rotation diameter (mm) | φ1680 | 2020 |
Barrel rotation height (mm) | 2370 | 2830 |
Overall dimensions (length, width and height mm) | 2540×980×2255 | 3060×1205×2580 |
Running size (length, width and height mm) | 2540×1700×2370 | 3060×2180×2840 |
The V-type mixer has the characteristics of dust-free operation, helps to keep the material particles intact, has no pollution to the materials, and can control the mixing time. In the pharmaceutical industry, it can be used to mix various dosage forms of raw materials such as pharmaceutical powders and granules. In the food industry, it can mix various powdery and granular food raw materials to ensure product quality. In the chemical industry, it can meet the mixing needs of different chemical powders and granular materials and help produce chemical products with relatively uniform ingredients. It plays a role in many industries that have requirements for material mixing.
