Single-pressure/dual-pressure automatic rotating continuous tableting equipment compresses granular raw materials into tablets. It is suitable for tablet production in the pharmaceutical industry and covers the needs of chemical, food, electronics and other industrial sectors.
The tableting chamber is completely isolated from the transmission mechanism to avoid cross-contamination; parts in contact with drugs are made of stainless steel or have special surface treatments, which are non-toxic and corrosion-resistant; the tableting chamber is sealed with transparent materials (plexiglass/glass), which is easy to observe and dust-proof; the surface is smooth and easy to clean, complying with GMP specifications. The fully enclosed stainless steel peripheral cover and the internal tabletop are made of the same material to maintain luster and prevent contamination; the transmission system is designed to be fully lubricated and reduce noise and wear; it is equipped with a dust suction device to effectively remove dust in the pressing chamber.

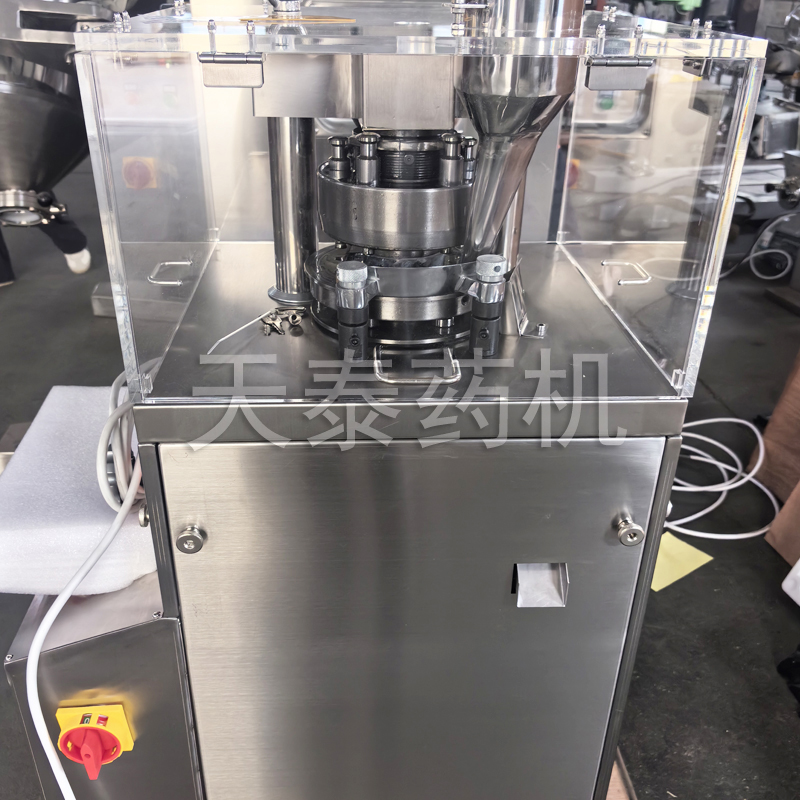

ZP-17/19 rotary tablet press:
The transparent protective cover supports full opening for easy cleaning and maintenance; the stepless speed adjustment function allows the rotation speed to be adjusted at will; the mechatronics design is equipped with touch keys and a display screen to display speed, output, and fault information in real time. The transmission system is independently sealed in the oil tank below the machine, safely separated and fully lubricated;
ZP-35D rotary tablet press:
The transparent glass door and window design supports full opening for easy internal cleaning; the layout of the controller and operating parts is optimized, and variable frequency speed regulation is adopted, which is easy to operate and rotates smoothly; the transmission device is completely built-in to keep the machine clean; it is equipped with an overload protection device, which automatically stops when the pressure exceeds the limit to improve safety.
model | Z P---5A | Z P---7A | Z P---9A |
Turntable punching die number | 5 | 7 | 9 |
Maximum working pressure (KN) | 40 | 40 | 40 |
Maximum tableting diameter (mm) | 15 | 15 | 15 |
Maximum tablet thickness (mm) | 6 | 6 | 6 |
Maximum filling depth (mm) | 15 | 15 | 15 |
Maximum tableting output (pcs/h) | 0.9 | 1.26 | 1.62 |
Turntable working diameter (mm) | 200 | 200 | 200 |
Turntable speed (r/min) | 0-30 | 0-30 | 0-30 |
Middle mold diameter (mm) | 26 | 26 | 26 |
Medium mold height (mm) | 22 | 22 | 22 |
Upper and lower punch diameter (mm) | 22 | 22 | 22 |
Length of upper and lower punches (mm) | 115 | 115 | 115 |
Overall dimensions (mm) | 470×590×1030 | 470×590×1030 | 470×590×1030 |
Motor power (kw) | 1.5 | 1.5 | 1.5 |
Voltage (v) | 220V/380V | 220V/380V | 220V/380V |
With its reliable tableting performance and GMP-compliant design, the ZP series rotary tablet press is used in the pharmaceutical industry for the production of various types of tablets (such as pharmaceutical tablets, health product tablets). It is also used in the chemical industry (catalyst molding, powder material pressing), the food industry (candy tablets, nutritional supplement tablets), the electronics industry (battery electrodes, ceramic components) and trial production and development scenarios in scientific research institutes. Through its modular structure and speed adjustment function, this equipment can adapt to the tableting needs of different materials, shapes and outputs from laboratory trials to production lines. It is a common equipment choice for tablet molding processes in many industries.
