The coarse grinder combines the needs of users, synthesizes the characteristics of similar foreign products, and carries out targeted improvements and optimizations.
It is made of carbon steel and is suitable for metallurgy, construction and other industries. It is made of all stainless steel and is suitable for pharmaceutical, chemical, food and other industries. The coarse crusher has a dust collection box and a collecting box, so there is no dust flying during the production process, which can improve working conditions and better meet the national 'GMP' standard requirements. It has compact structure, easy operation and maintenance, strong and durable, stable operation and high output.

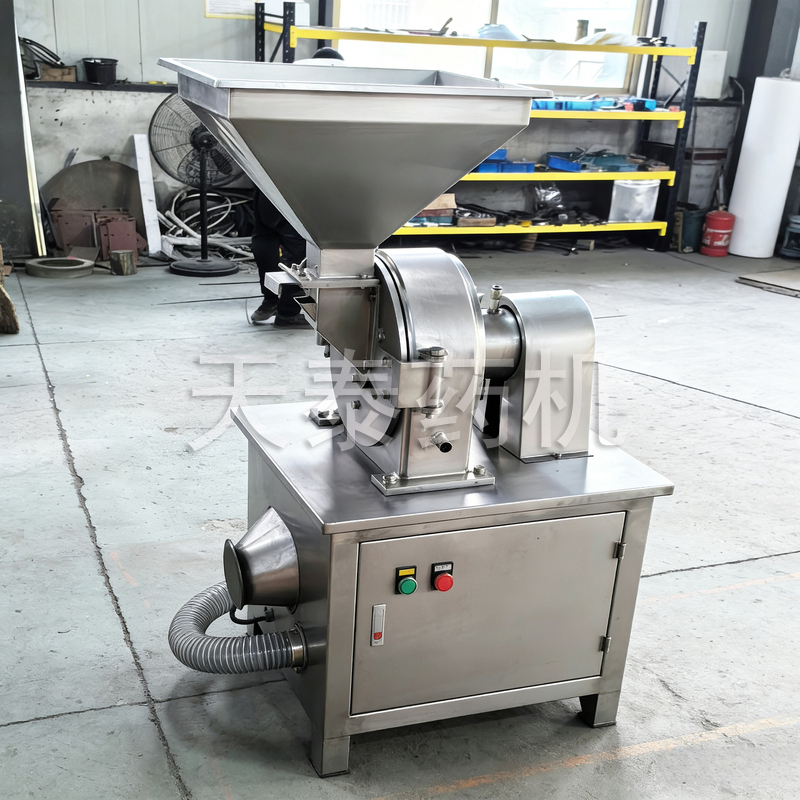

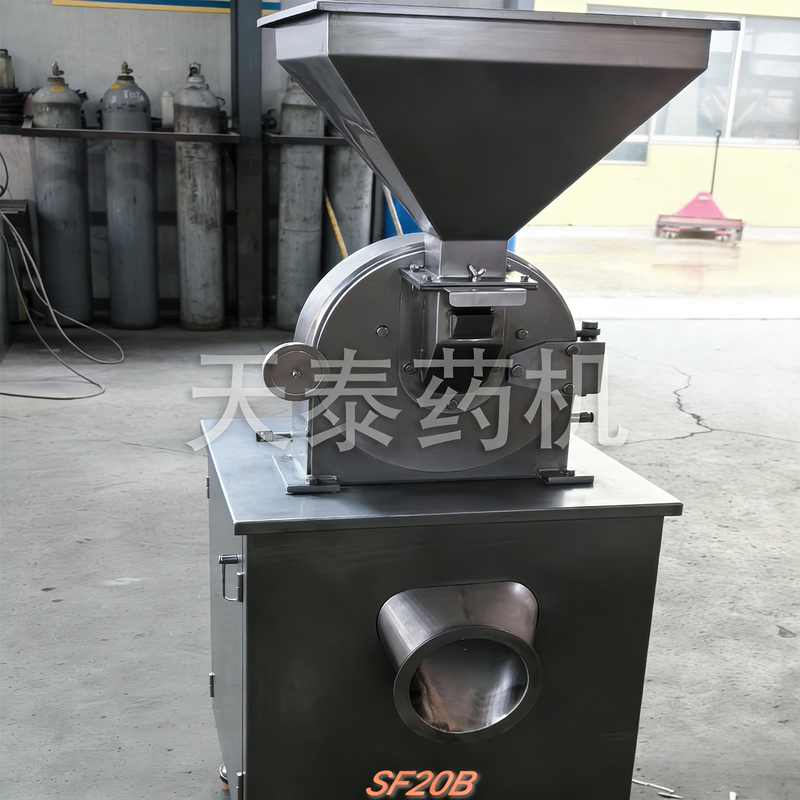

The coarse crusher is a vertical tiltable structure, consisting of a base, a motor, a crushing chamber cover and a hopper. The hopper and cover can be tilted to a certain angle to facilitate the removal of materials in the crushing chamber.
After the material enters the crushing chamber from the feed hopper, it will be crushed through impact and shearing under the combined action of the rotating knife mounted on the motor shaft and the knife fixed above the triangle seat in the crushing chamber. Under the action of centrifugal force, the crushed materials automatically flow to the outlet through the screen, thereby completing the entire crushing process.
| parameter | Type 20 | Type 20A | Type 20B |
Production capacity (kg/h) | 100~500 | ||
Feed particle size (mm) | ≤100 | ||
Discharge particle size (mm) | 0.5~20 | ||
Spindle speed (r/min) | 940 | ||
Crushing motor power (kw) | 4.0 | ||
Vacuum cleaner motor power (kw) | 0.75 | ||
Crushing chamber materials | carbon steel | Stainless steel | Stainless steel |
Weight(kg) | 350 | 300 | 400 |
Overall dimensions (length × width × height) | 650×700×1250 | (Packaging) 1000×520×1250 | Host 900×650×1500 |
Coarse crusher is widely used in many industries such as pharmaceuticals, chemicals, food, metallurgy, construction, etc. It can process a variety of materials including plastics, copper wire, Chinese herbal medicine, rubber, ore, etc. It is not limited by material viscosity, hardness, softness, fiber, etc. It can complete the coarse crushing of materials to meet the needs of different industries for material pretreatment. It can also be used as a supporting equipment for the pre-processing of micro-crushing to provide suitable material particle size for subsequent processing.
