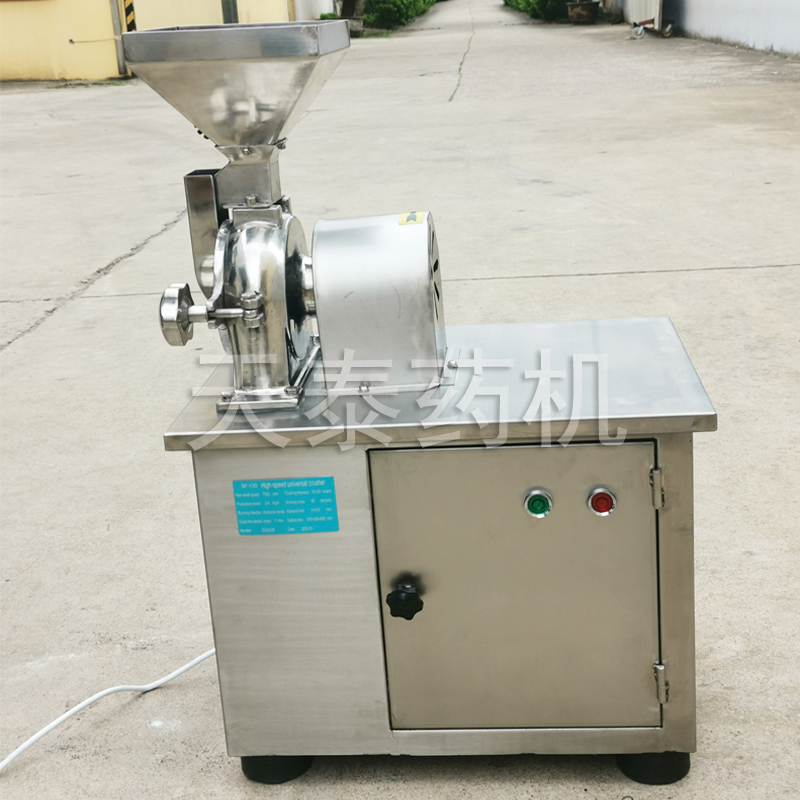

The multifunctional crusher has a simple and sturdy structure, stable operation and good crushing effect. The crushed materials can be directly discharged from the grinding chamber of the main machine. The particle size can be obtained by replacing mesh screens with different apertures. In addition, the machine is made of all stainless steel. The inner walls of the machine casing are all machined to achieve a smooth surface, which has changed the roughness and dust accumulation on the inner walls of previous models, making the production of pharmaceuticals, food, chemicals, etc. more in line with national standards and meeting GMP requirements.

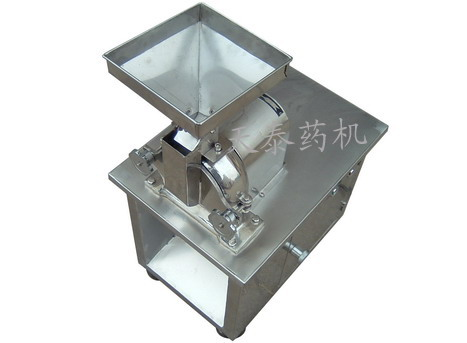

top view |

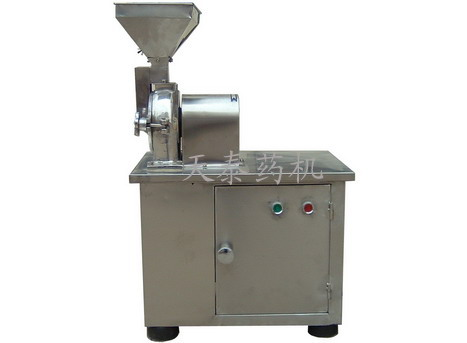

Main view |
rear view |

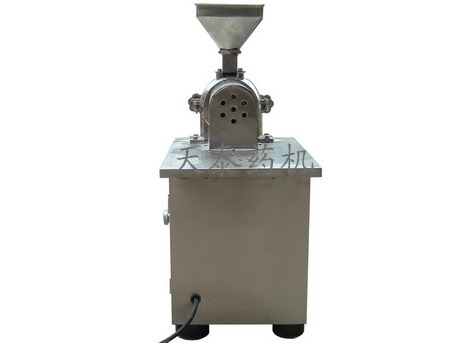

left view |  Right view (outlet) |

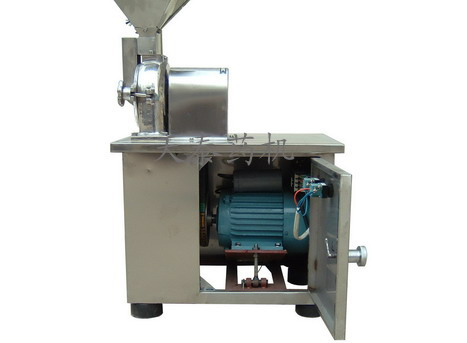

Motors and electrical appliances |

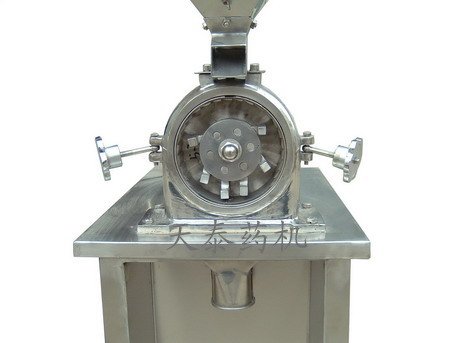

Crushing chainring |
name | Spindle speed | Grinding fineness | crushing limits | material limit | Equipped with motor | Overall dimensions |
SF100 | 8000r/min | 10-120 mesh | 1-2kg/h | 5×5×5 | 0.75kW | 270×540×480 |
SF130 | 7000r/min | 10～120 mesh | 2-5kg/h | 5×5×5 | 1.1kw | 550×380×810 |
SF130e desktop | 7000r/min | 10～120 mesh | 2-5kg/h | 5×5×5 | 1.1kw | Desktop 600×310×640 |
SF180 | 4000r/min | 10～120 mesh | 10～20kg/h | 8×8×8 | 2.2kw | 420×675×910 |
The multi-function crusher has the characteristics of efficient crushing, strong material adaptability and reliable product quality. In the pharmaceutical industry, it can crush Chinese herbal medicines and chemical raw materials well, and meets the relevant standards for pharmaceutical production; in the chemical industry, it can process plastics, rubber and other materials as a precursor to subsequent processing; in the food industry, it can crush food additives, spices, etc. to ensure product quality; in metallurgy, construction and other industries, it can also crush hard materials, making it a practical key equipment in many industries.
