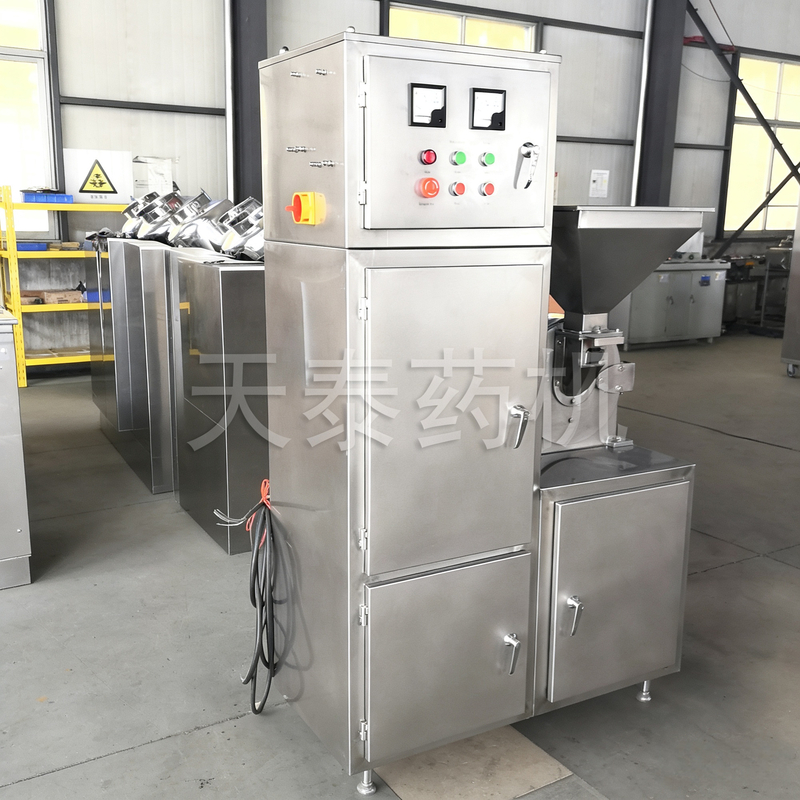

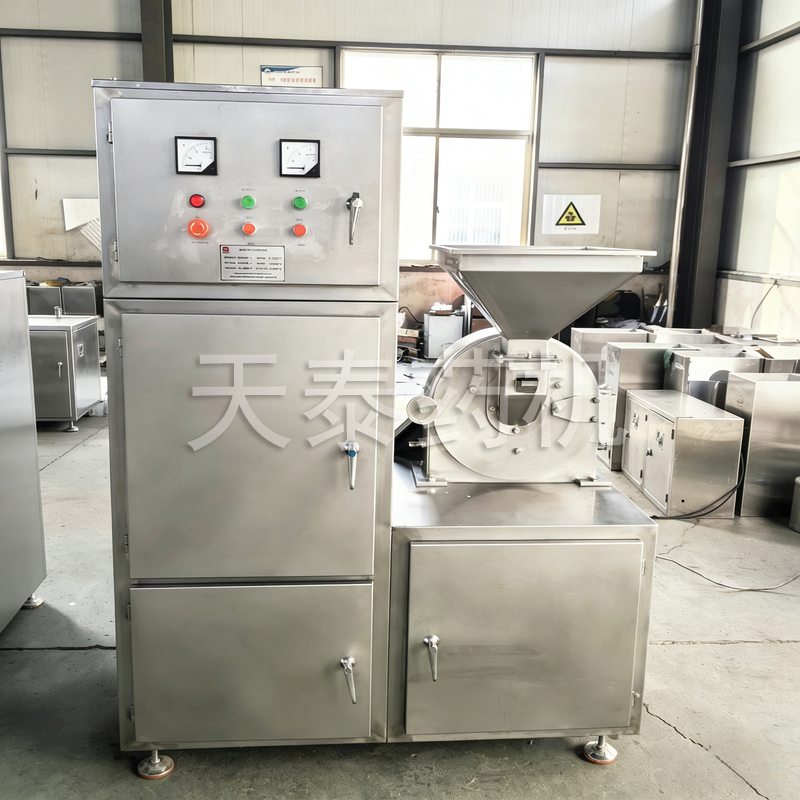

The vacuum crusher is a modern equipment that integrates crushing and dust collection functions. It is specially designed for pharmaceutical, chemical, food and other industries. This equipment uses the relative movement between the movable toothed disc and the fixed toothed disc to achieve efficient crushing of materials under the action of tooth impact, friction and mutual impact between materials. The crushed material automatically enters the collection bag under the action of rotating centrifugal force, and the dust is filtered through the bag and discharged through the dust collection box to ensure a clean production environment. Made entirely of stainless steel, in line with international health requirements.
Efficient crushing and dust collection integrated: The equipment integrates crushing and dust collection functions, so there is no dust flying during the production process, improving the working environment and reducing the risk of dust pollution.
Safety and health: Made entirely of stainless steel, with compact structure, smooth surface and easy cleaning, it meets the high requirements for hygienic conditions in pharmaceutical, food and other industries.
High efficiency and energy saving: The optimized design of the crushing chamber and fan system improves crushing efficiency, reduces energy consumption, and improves production efficiency.
Stable and reliable: The equipment operates smoothly, with low noise and small vibration. Key components are made of wear-resistant materials, which has a long service life and reduces maintenance costs.
Easy to operate: Equipped with an automated control system that supports one-button operation, simplifying the operating process and reducing labor intensity.
Easy to clean and maintain: The equipment structure has no dead ends and is easy to disassemble, clean and replace.
Specification | Spindle speed | Grinding fineness | production capacity | material limit | Equipped with motor | Vacuum power | Overall dimensions | triangle belt | Bearings/Quantity |
SFX180 | 4000r/min | 10-120 mesh | 10-20Kg/h | 8×8×8 | 2.2Kw-2P | 0.37Kw | 1000×700×1260 | A1041/2 | 6206/2 |
SFX250 | 4000r/min | 10-120 mesh | 50-250Kg/h | 10×10×10 | 5.5Kw-2P | 1.5kW | 1015×680×1690 | B1956/3 | 6210/2 |
SFX320 | 4000r/min | 10-120 mesh | 80-300Kg/h | 10×10×10 | 7.5Kw-2P | 1.5kW | 1330×790×1540 | B2134/3 | 6210/2 |
Vacuum crushers are widely used in pharmaceutical, chemical, food, agriculture, mining and other fields. In the pharmaceutical industry, it is used to crush Chinese medicinal materials, crystalline drugs and non-organized lumpy brittle drugs to improve drug solubility and bioavailability; in the chemical industry, it can process hard and brittle materials such as plastics, rubber, ores to meet the needs of refined processing; in the food industry, it is used Use it to crush medium and low hardness materials such as sugar, salt, pepper, soybeans, etc. to ensure product fineness and hygienic standards; in addition, this equipment is also suitable for agriculture (such as crushing straw, feed) and mining (such as crushing ore) and other fields to achieve dust-free and efficient crushing processing of materials.
The vacuum crusher is a modern equipment that integrates crushing and dust collection functions. It is specially designed for pharmaceutical, chemical, food and other industries. This equipment uses the relative movement between the movable toothed disc and the fixed toothed disc to achieve efficient crushing of materials under the action of tooth impact, friction and mutual impact between materials. The crushed material automatically enters the collection bag under the action of rotating centrifugal force, and the dust is filtered through the bag and discharged through the dust collection box to ensure a clean production environment. Made entirely of stainless steel, in line with international health requirements.
Efficient crushing and dust collection integrated: The equipment integrates crushing and dust collection functions, so there is no dust flying during the production process, improving the working environment and reducing the risk of dust pollution.
Safety and health: Made entirely of stainless steel, with compact structure, smooth surface and easy cleaning, it meets the high requirements for hygienic conditions in pharmaceutical, food and other industries.
High efficiency and energy saving: The optimized design of the crushing chamber and fan system improves crushing efficiency, reduces energy consumption, and improves production efficiency.
Stable and reliable: The equipment operates smoothly, with low noise and small vibration. Key components are made of wear-resistant materials, which has a long service life and reduces maintenance costs.
Easy to operate: Equipped with an automated control system that supports one-button operation, simplifying the operating process and reducing labor intensity.
Easy to clean and maintain: The equipment structure has no dead ends and is easy to disassemble, clean and replace.
Specification | Spindle speed | Grinding fineness | production capacity | material limit | Equipped with motor | Vacuum power | Overall dimensions | triangle belt | Bearings/Quantity |
SFX180 | 4000r/min | 10-120 mesh | 10-20Kg/h | 8×8×8 | 2.2Kw-2P | 0.37Kw | 1000×700×1260 | A1041/2 | 6206/2 |
SFX250 | 4000r/min | 10-120 mesh | 50-250Kg/h | 10×10×10 | 5.5Kw-2P | 1.5kW | 1015×680×1690 | B1956/3 | 6210/2 |
SFX320 | 4000r/min | 10-120 mesh | 80-300Kg/h | 10×10×10 | 7.5Kw-2P | 1.5kW | 1330×790×1540 | B2134/3 | 6210/2 |
Vacuum crushers are widely used in pharmaceutical, chemical, food, agriculture, mining and other fields. In the pharmaceutical industry, it is used to crush Chinese medicinal materials, crystalline drugs and non-organized lumpy brittle drugs to improve drug solubility and bioavailability; in the chemical industry, it can process hard and brittle materials such as plastics, rubber, ores to meet the needs of refined processing; in the food industry, it is used Use it to crush medium and low hardness materials such as sugar, salt, pepper, soybeans, etc. to ensure product fineness and hygienic standards; in addition, this equipment is also suitable for agriculture (such as crushing straw, feed) and mining (such as crushing ore) and other fields to achieve dust-free and efficient crushing processing of materials.
