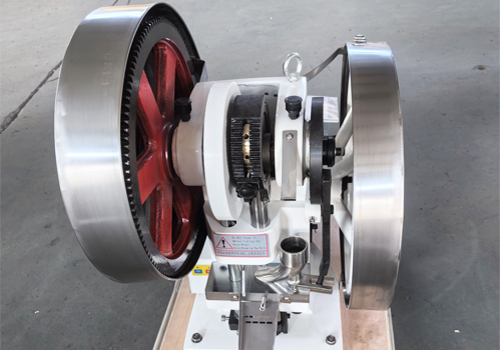

Taizhou Tiantai Tablet Press Installation Instructions
1. This machine is packaged as a whole. After unpacking, move it to a suitable place for use. It can be used after it is leveled. If the position is fixed, anchor screws can be installed.
2. For electrical circuits and devices, attention should be paid to the voltage. If the user does not propose it, it will be stipulated as 380 volts. When wiring, the direction of rotation of the motor should be paid attention to. It must be consistent with the direction of the arrow on the machine and must not be reversed. To ensure electrical safety, an effective ground wire must be installed.
3. This machine should be used indoors in a dry, clean and well-lit environment.
Taizhou Tiantai Tablet Press Maintenance Instructions
1. Regularly inspect the machine parts, 1-2 times a month. The inspection items are whether the movable parts such as worm gear, worm, bearing, pressure wheel, crankshaft, upper and lower guide rails, etc. rotate freely and are worn. If any defects are found, they should be repaired and used in time.
2. After a single use or when the machine is stopped, the remaining powder should be taken out and the residual powder on the front part of the machine should be brushed away. If it is not used for a long time, all the dies must be removed and the machine must be wiped clean. The smooth surface of the machine should be coated with anti-rust oil and covered with a cloth.
3. For maintenance of dies, the dies should be placed in a covered iron box so that the dies are completely immersed in oil and kept clean to avoid rust and bruises. Try to customize the iron box to contain one box of each specification, which can avoid installation errors during use and help to understand the damage situation.
4. The place of use should be cleaned frequently, especially for pharmaceutical and edible tablet manufacturing, it is not suitable to have lime sand and flying dust.
