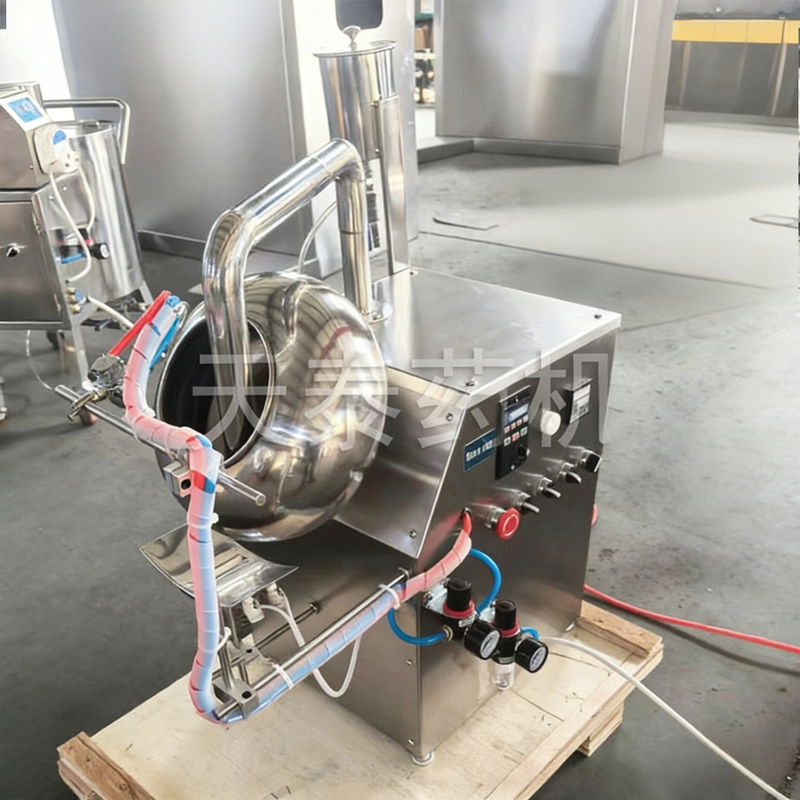

Coating machine BY-300/400 series is a multi-functional coating and polishing equipment specially designed for the pharmaceutical industry and food industry. It is suitable for uniform polishing of the outer layer of tablet chips and coating of candy machine-made pills. Through mechanical control and process optimization, this equipment can significantly improve the appearance quality of products, while also providing protection and functional improvement, meeting the needs of pharmaceutical and food companies for high-quality coating processes.
Pharmaceutical industry applications
Coating and polishing: The outer layer of the tablet chips is uniformly coated to form a sugar-coated layer with bright color and smooth surface, which improves the aesthetics and recognition of the tablets.
Protective effect: The coating layer forms a solid protective barrier, effectively blocking oxygen and moisture, preventing the chip from oxidative deterioration, moisture, or volatilization of active ingredients, and extending the shelf life of the product.
Taste optimization: Covers the bad smell of the chip, improves the swallowing experience, and controls the dissolution rate of the drug in the gastrointestinal tract to improve medication compliance.
Food industry applications
Candy coating: suitable for surface coating and polishing of chocolate beans, soft candies and other machine-made pills to enhance gloss and market appeal.
Quality improvement: Improve the taste of candy through the coating process, prevent adhesion, and improve product stability.
Optimization of coating effect
It adopts high-precision spraying and pot movement design to ensure that the coating liquid evenly covers the chip surface and forms a dense and smooth crystallized layer.
The movement trajectory of the pot is scientifically planned to make the materials continue to roll during the coating process, reducing adhesion or uneven coating.
process stability
After coating, the sugar powder crystallizes completely to form a solid coating, which blocks the impact of the external environment on the chip and ensures product quality consistency.
Supports flexible adjustment of process parameters (such as rotation speed, temperature) to adapt to different material characteristics and coating needs.
Multi-industry compatibility
Compatible with the needs of both pharmaceutical and food industries, it supports the coating of tablet chips (2-25mm specifications) and candy pills.
Two models, BY-300 (small batch) and BY-400 (medium batch), are provided to suit different production scales.
Ease of operation and maintenance
The human-computer interaction interface simplifies the operation process, supports parameter preset and process storage functions, and lowers the technical threshold.
Modular structure design, key components (such as spray gun, pot body) can be quickly disassembled and assembled, which facilitates cleaning and maintenance and reduces downtime.
Specification | production capacity | Pot inclination angle | Motor power | Fan power | Electric heating power | weight | Speed(r/min) |
BY-300 | 1-3kg/time | 20°-40° | 0.25kw | 60w | 1.4KW | 45KG | 0-46r/min |
BY-400 | 2-5kg/time | 20°-40° | 0.25kw | 60w | 1.4KW | 46KG | 0-46r/min |
Improve product performance
The tablets have a bright surface and uniform color, which enhances consumer recognition and brand recognition.
The candy tastes better after being coated, and the market feedback is positive, helping to improve product competitiveness.
Ensure quality and safety
The solid coating effectively extends the shelf life of the product and complies with relevant standards in the pharmaceutical and food industries.
Reduce dust pollution during the production process, optimize the workshop environment, and protect the health of operators.
Optimize overall costs
The utilization rate of auxiliary materials is high, and the spraying system accurately controls the dosage, reducing waste and reducing single batch production costs.
The equipment has good stability, low failure rate, controllable maintenance costs, and improved return on investment.
Pharmaceutical company case: A pharmaceutical company uses BY-400 to produce film-coated tablets. After coating, the dissolution rate of the tablets complies with pharmacopoeia standards. Patients reported improved taste and significantly improved market recognition.
Food factory case: A candy manufacturer used BY-300 to coat chocolate pills. The gloss of the product reached a high level in the industry, and the export orders increased steadily.
