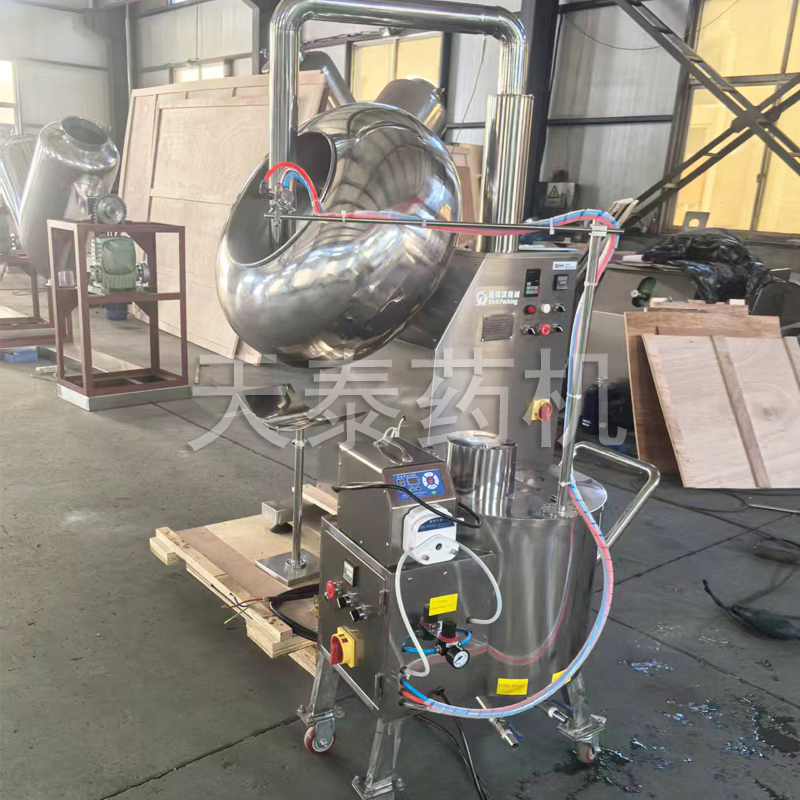

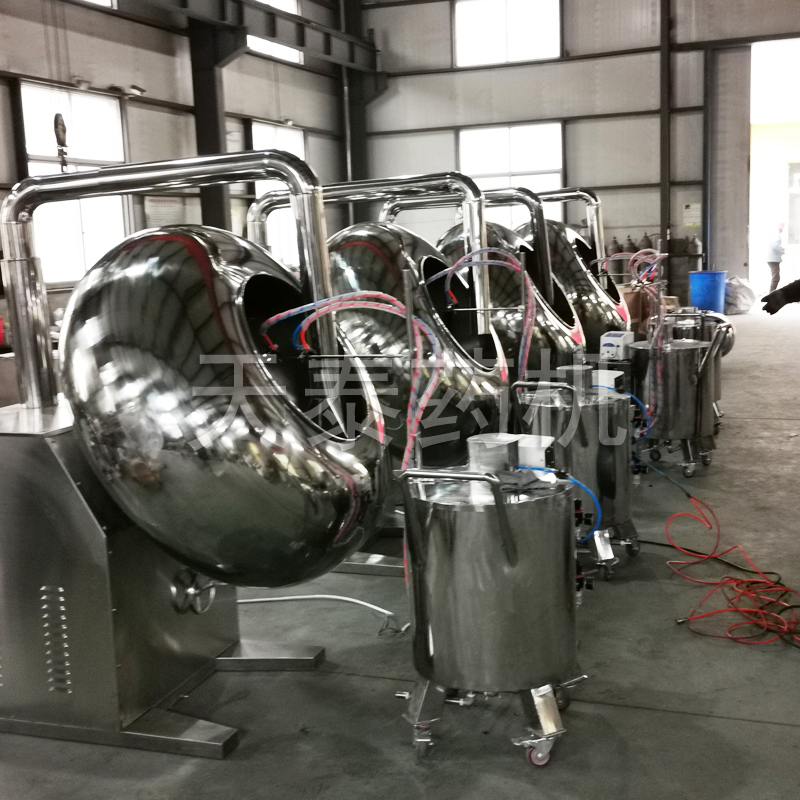

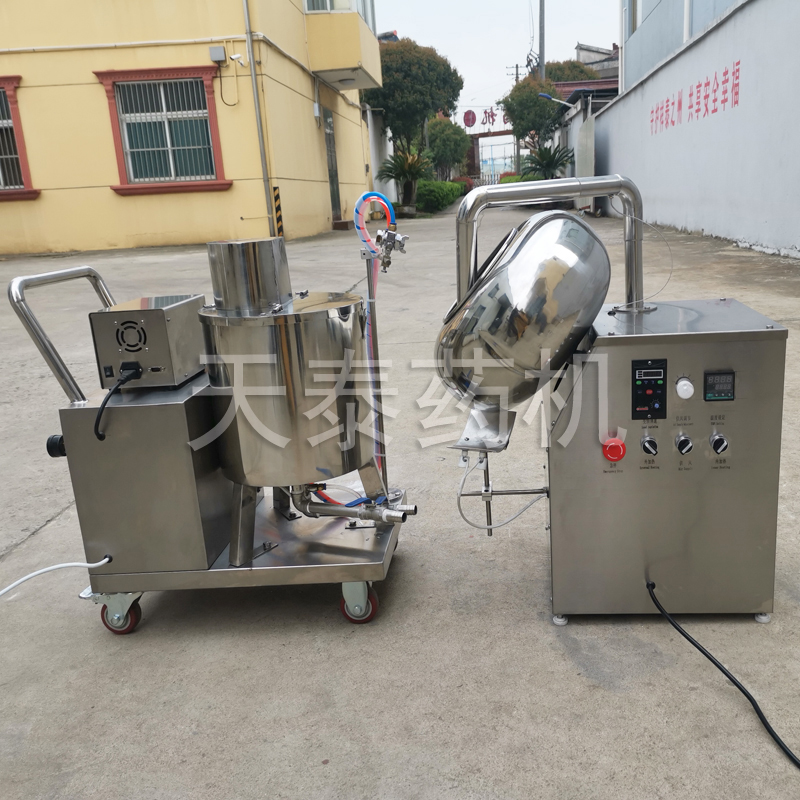

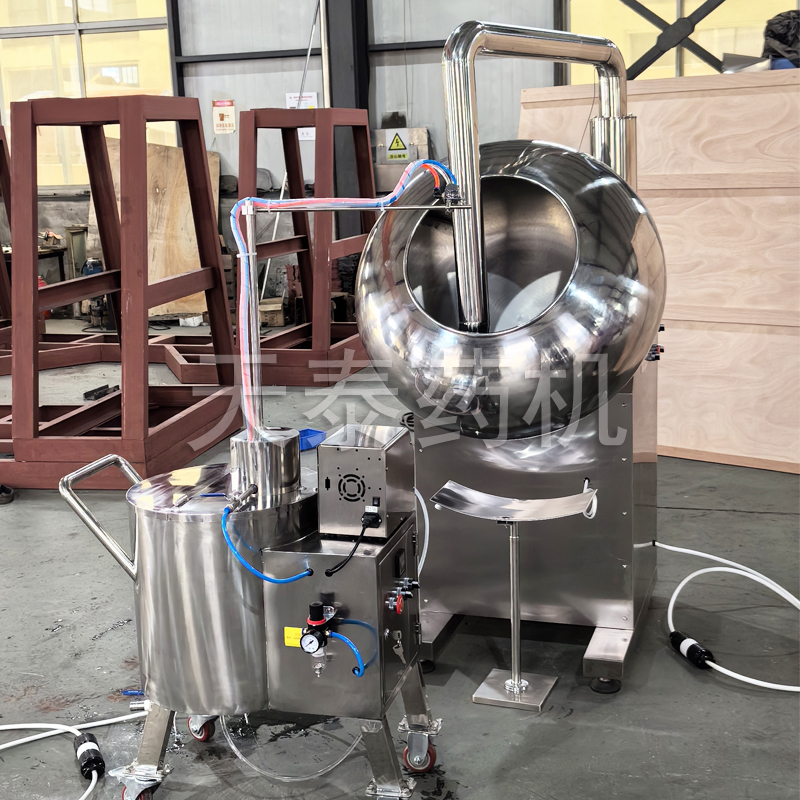

The simple film coating machine is simple to operate and easy to use. The surface after coating is smooth, bright and delicate. It can save auxiliary materials and is easy to maintain.
The simple film coating machine is suitable for sugar coating and film coating on the core surface of Chinese and Western medicine tablets, and can also be used for coating food and chocolate. It is a new type of equipment that integrates strong electricity, weak electricity, hydraulic and pneumatic functions, and is a transformation of the original ordinary sugar coating machine. It is mainly composed of a host machine (original sugar coating machine), a controllable normal temperature hot air system, a spray system with automatic liquid and air supply, etc. The main motor has variable frequency and speed regulation, and uses a high-atomization spray gun to spray the coating accessories onto the surface of the tablets through automatic electrical control. At the same time, the tablets move in a continuous and complex trajectory in the coating pot, so that the coating liquid is evenly wrapped on the tablet core. The pot is equipped with controllable room-temperature hot air, which can dry the tablets simultaneously, so that a strong, dense, complete and smooth film can be quickly formed on the surface of the tablets.
Specification | production capacity | Pot inclination angle | Motor power | Fan power | Liquid tank capacity | spray gun | Electric heating power | weight | Speed(r/min) |
BYC-300 | 1-3kg/time | 42° | 0.37kW | 60w | 1L | RA-C1 | 1.4KW | 49KG | 0-46r/min |
BYC-400 | 2-5kg/time | 42° | 0.37kW | 60w | 1L | RA-C1 | 1.4KW | 50KG | 0-46r/min |
BYC-600 | 8～15kg/time | 30° | 0.75kW | 100w | 5L | RA-C1 | 2kw | 150kg | 0-35r/min |
BYC-800 | 30～50kg/time | 30° | 1.1kw | 200w | 8L | According to | 4KW | 280KG | 0-32r/min |
BYC-1000 | 50-70kg/time | 30° | 1.5kw | 200w | 10L | 4KW | 300KG | 0-32r/min | |
BYC-1250 | 80-150kg/time | 30° | 2.2kw | 370w | 20L | 6kw | 500KG | 0-28r/min |
The simple film coating machine is easy to operate, the coating effect meets basic needs and the cost is controllable. In the pharmaceutical industry, it is often used for film or sugar coating of Chinese and Western medicine tablet cores, which can improve the appearance of tablets and enhance stability; in the food field, it can be used for surface polishing and protective treatment of candies and chocolates, which helps to extend the shelf life; in the chemical industry, it can also be used for the surface coating process of small particle materials, meeting the basic needs of many industries for product modification, moisture-proofing and appearance optimization.
