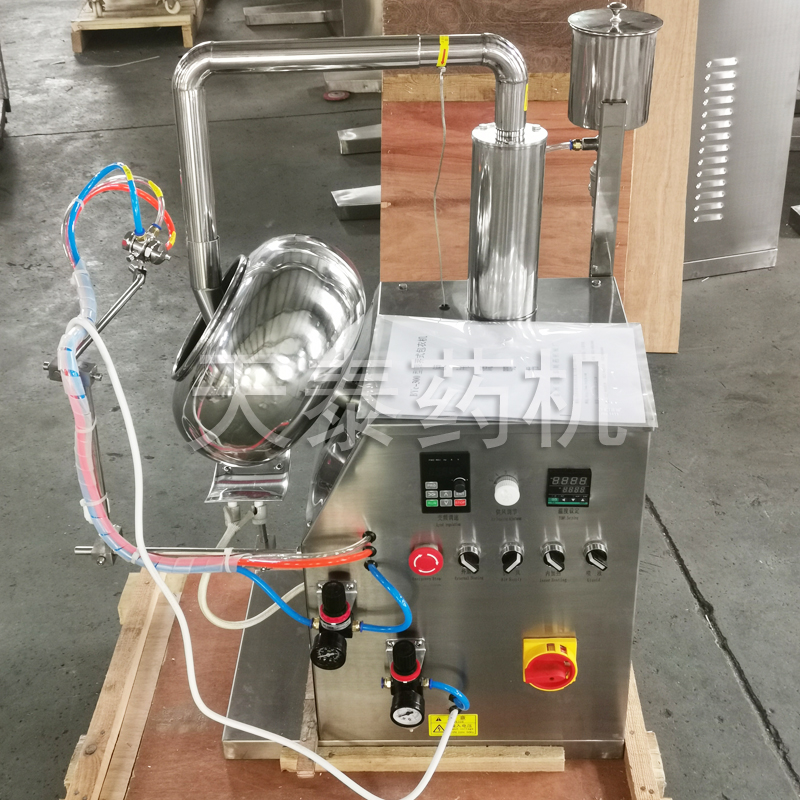

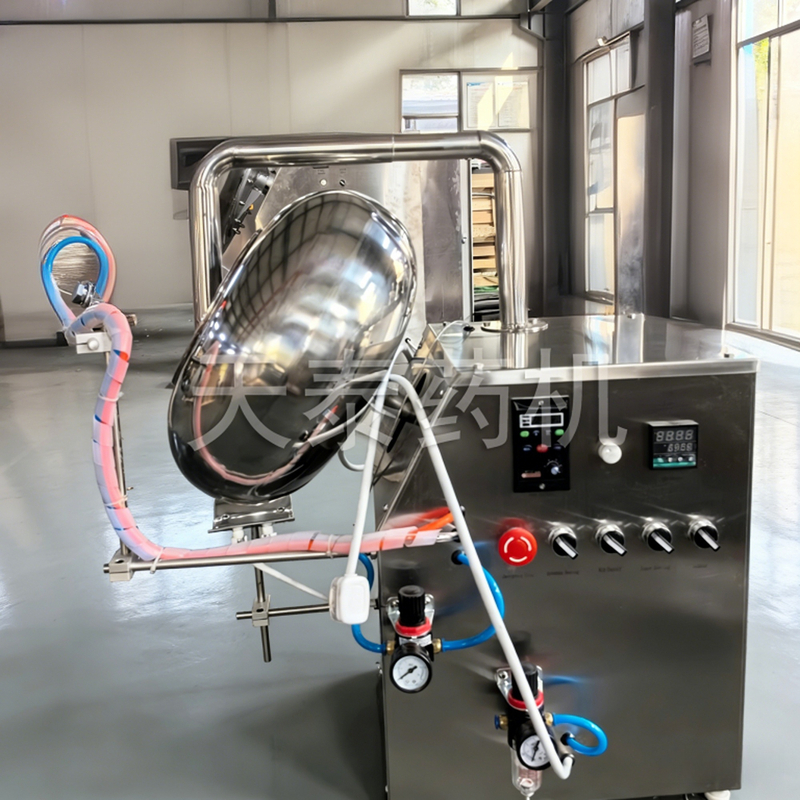

The coating machine BYC-300/400 series is a professional equipment designed for the surface coating needs of Chinese and Western medicine tablet cores. It integrates mechanical, electrical, hydraulic and pneumatic technologies. It is a new coating solution for the technological upgrade of traditional sugar coating machines. The equipment consists of a host machine (based on optimization of the sugar coating machine), a controllable normal temperature hot air system, an automatic liquid and air supply spray system and other modules. It is suitable for various coating processes such as sugar coating and film, and can meet the dual needs of pharmaceutical companies for coating quality and efficiency.
host system
Based on the optimization of the structure of the traditional sugar coating machine, the main motor with variable frequency speed regulation is used to achieve high atomization spraying of coating accessories through electrical automatic control.
The tablets move along a complex trajectory in the coating pot to ensure that the coating liquid evenly covers the surface of the tablet core and forms a dense coating layer.
Controllable normal temperature hot air system
The pot is equipped with a normal temperature hot air circulation device to synchronously dry the coating liquid, accelerate the formation of a film on the tablet surface, and improve the coating efficiency.
Automatic liquid and air supply spray system
Temperature control function: The liquid supply truck supports heating and insulation of temperature-sensitive coating liquids (temperature is adjustable). The barrel is lined with insulating rock wool. Even if the internal temperature reaches 80-90°C, the outer wall remains at normal temperature to ensure safe operation.
Efficient liquid supply design: Equipped with a peristaltic pump and dual two-position three-way solenoid valves, it can drive two large-diameter spray guns at the same time to meet high production capacity needs.
Intelligent stirring system: built-in pneumatic stirring motor with adjustable stirring speed to ensure the uniformity of the coating liquid and avoid precipitation or stratification.
Convenience of movement: Universal wheels are installed at the bottom of the liquid supply truck, which can be flexibly moved to different work stations and adapted to use in multiple scenarios.
Ease of operation
The main motor has variable frequency speed regulation and flexible parameter settings to adapt to the coating needs of tablets of different specifications.
The human-computer interaction interface simplifies the operation process, lowers the technical threshold, and shortens the training cycle.
Coating quality optimization
The combination of high atomization spray gun and complex trajectory movement ensures that the coating liquid is evenly distributed and the tablet surface is smooth, bright and delicate.
Room temperature hot air synchronous drying technology accelerates film formation and improves the density and integrity of the coating layer.
Improved utilization of excipients
Accurate spray control reduces the waste of excipients and reduces single batch production costs.
The thermal insulation design of the liquid supply system prevents the quality of the coating liquid from being affected by temperature fluctuations and has higher stability.
Maintenance and cleaning convenience
Modular structure design, key components (such as spray gun, mixing motor) can be quickly disassembled and assembled for easy daily cleaning and maintenance.
The independent design of the liquid supply truck reduces interference with cleaning of the main engine and increases the overall service life of the equipment.
Adaptability and scalability
It supports various coating processes such as sugar coating and film, and is compatible with tablets of different shapes (such as special-shaped tablets) and materials.
The liquid supply system can be expanded to multiple spray gun configurations to meet large-scale production needs.
Specification | production capacity | Pot inclination angle | Motor power | Fan power | Liquid tank capacity | spray gun | Electric heating power | weight | Speed(r/min) |
BYC-300 | 1-3kg/time | 20°-40° | 0.37kW | 60w | 1L | RA-C1 | 1.4KW | 49KG | 0-46r/min |
BYC-400 | 2-5kg/time | 20°-40° | 0.37kW | 60w | 1L | RA-C1 | 1.4KW | 50KG | 0-46r/min |
Pharmaceutical industry: Suitable for sugar coating and film coating of Chinese and Western medicine tablets to improve tablet stability and patient compliance.
R&D organization: Support the development and verification of new drug coating processes, and provide a controllable coating parameter experimental platform.
