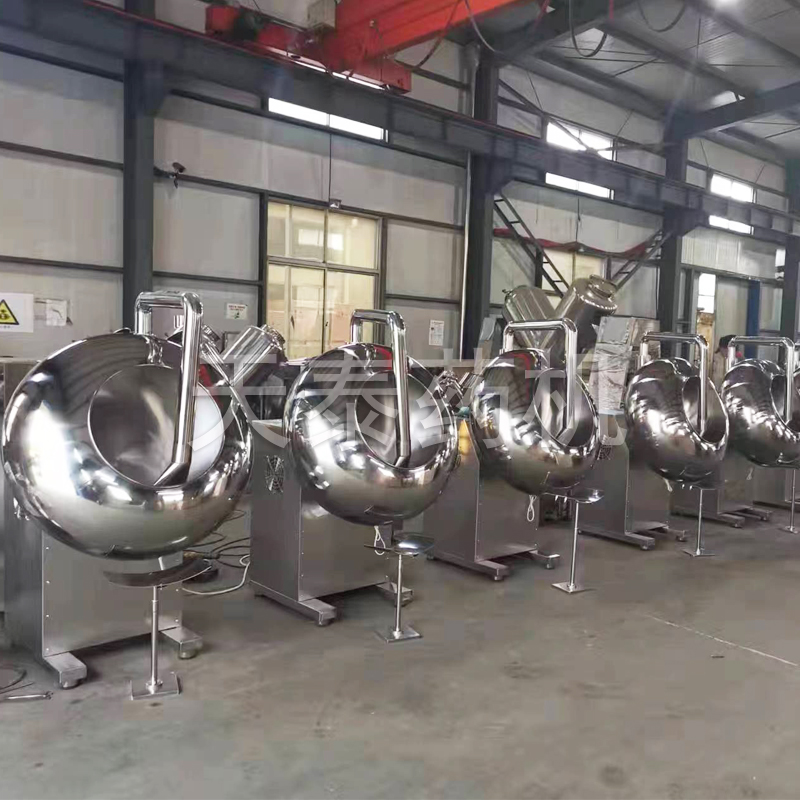

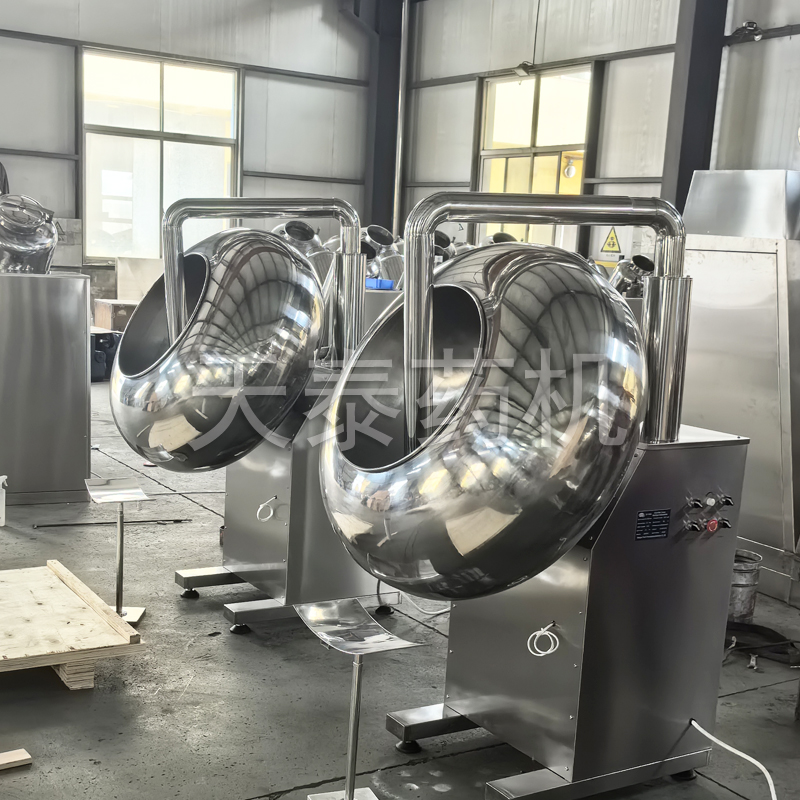

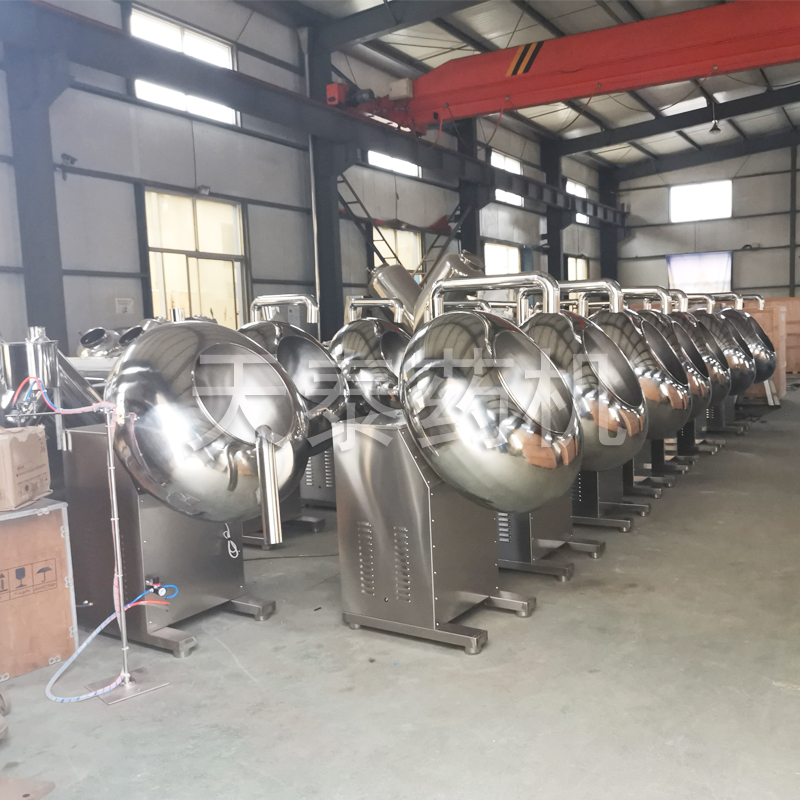

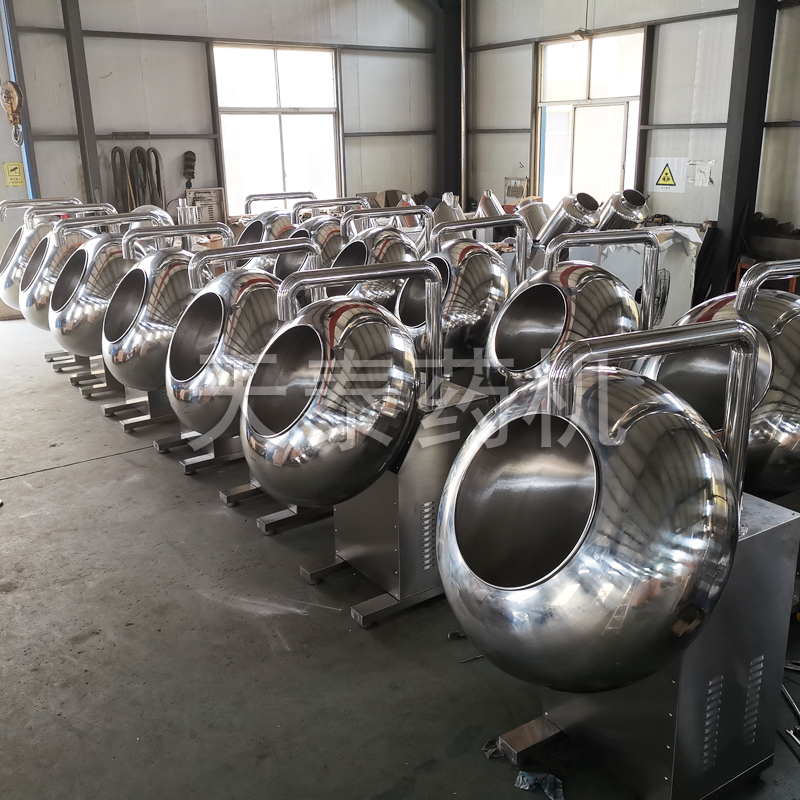

Coating machine BY-600/800/1000

1. Product Overview

       Coating machine BY-600/800/1000 series is a coating and polishing equipment specially designed for the pharmaceutical industry and food industry. Through mechanical control and process optimization, this model can uniformly coat and polish tablet cores, candy pills and other materials to improve product appearance quality and stability. It is suitable for pharmaceutical companies and food processing plants that require high-quality coating processes.

2. Core functions and application areas

Pharmaceutical industry applications

Coating and polishing: Provide a uniform and bright sugar coating or film coating layer for the tablet core to improve the aesthetics and recognition of the tablets.

Protective effect: The coating layer forms a protective barrier to prevent the tablets from oxidative deterioration, moisture, or volatilization of active ingredients, thereby extending the shelf life.

Taste optimization: Covers the bad smell of tablets, improves the swallowing experience, and controls the dissolution rate of the drug in the gastrointestinal tract to improve medication compliance.

Food industry applications

Candy coating: suitable for surface polishing of chocolate beans, soft candies and other machine-made pills to enhance gloss and market appeal.

Quality improvement: Improve the taste of candy through the coating process, prevent adhesion, and improve product quality.

3. Product features and technical advantages

Efficient coating and polishing technology

The rotating pot and high-precision liquid spraying system are used to ensure that the coating liquid evenly covers the surface of the material and forms a dense and smooth crystal layer.

The optimized design of the movement trajectory of the pot body allows the material to continue rolling during the coating process, reducing adhesion or uneven coating.

process stability

After coating, the sugar powder crystallizes completely, forming a solid protective layer to block the impact of the external environment on the tablet core.

The coating layer thickness and crystallization effect can be controlled by adjusting parameters such as temperature, rotation speed, and spray volume.

Multi-spec compatibility

Three models, BY-600 (pot diameter 600mm), BY-800 (800mm), and BY-1000 (1000mm), are provided to meet the needs of different production scales.

It supports the coating processing of tablets, pills and granules with specifications of 2-25mm, and can flexibly cope with diversified materials.

Ease of operation and maintenance

The human-computer interaction interface simplifies parameter setting and supports one-click startup and process storage functions.

Modular structure design, key components (such as spray gun, pot body) can be quickly disassembled and assembled for easy cleaning and maintenance.

4. Product parameters
